Ms-650AC Wire Cutting Machine CNC Wire Cutting Machine Center

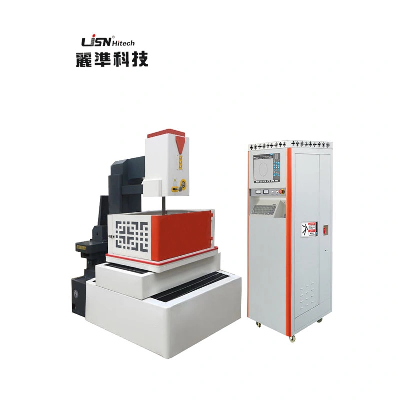

Product DescriptionThe MS-650AC is a high efficiency wire cutting machine with high precision and rigidity. It is a set of machine tool electrical appliances, high frequency power supply, servo control and graphics programming as one, to achieve high efficiency, high precision, high finish, simple processing control, greatly improve the processing level of fast wire cutting machine.Flexible commutation with frequency converter is adopted in machine tool commutation, which can arbitrarily adjust the speed of wire conveyor drum, thereby improving the smoothness of workpiece. The mechanical system consists of machine bed, coordinate table, wire transport mechanism, wire frame mechanism, taper mechanism, lubrication system and so on. Machine tool bed is usually a box structure, which is the installation platform for each component, and is closely related to the accuracy of the machine tool. It useS the high precision guide rail with high strength, heavy loading capacity and low resistance. The stability of the machine is also excellent. The failure rate is almost 0. Main FeaturesSelect paired clearance-free bearings to improve accuracy.Selection of high quality ball screwUsing steel-inlaid guide railGood assembly process requirementsBy using frequency converter, the speed of the wire drum can be adjusted arbitrarily, thus improving the smoothness of the workpieceDetailed PhotosProduct ParametersSpecification & ModelsMS-650ACWorktable Travel (X,Y)600*500mmWorktable (W*D)920*680mmWorking Tank Dimensions(W*D*H)1150*830*450mmTaper Axis Travel (U, V)60*60mmMaximum Cut Taper6°/80mmZ Axis Travel280/380mmMaximum Workpiece Thickness300/400mmMaximum Workpiece Weight1000kgSpeed of Electrode Wire (group wire)1.18-11.18m/sDiameter of Electrode Wire (group wire)0.16-0.22mmTension of Electrode Wire (wire group)10-30NPositioning Accuracy0.015mmRepositioning Accuracy0.008mmMachining Accuracy±0.004mmPower Supply380V50/60Hz2.0KVAMax Work Current10AMaximum Cutting Speed≥280mm²/minTank Size130L/870*470*320mmControl Cabinet Size580*580*1860mmMachine Dimension1950*1650*2100mmMachine Weight2500kgCompany Profile FAQ1. Is it all right to make customer's own brand name?A: yes. we are available with OEM 2. Are you a manufactuer or trading company?A:We are the manufacturer 3. Can you do the design for us?A: yes. if you want a different control system design or higher column , we are available. 4 . What is your terms of delivery?A: FOB shenzhen. 5. What's your payment term?A: T/T OR L/C at sight./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
