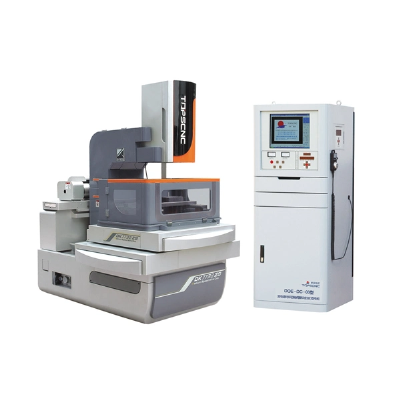

Technique parameters Technical parameterUnitDK7732ZGTable size (W*D)mm740×460Table travel (X*Y)mm320×400Max.workpiece dimensionmm800x500Table size(U*V)mm±30×±30Max. workpiece weightkg600Max. thickness of workpiecemm300Max. taper angle/workpiece thickness ±6°/80mmMolybdenum Dia.mmφ0.15~φ0.25mm(φ0.18mm recommend)Max. wire feed ratem/sec1~11.4m/sec frequency adjustableMachining precisionmm≤0.01Max. machining speedmm2/min≥200Surface roughnessμmone time Ra≤2.5,three times Ra≤1.0 five times Ra≤0.8Linkage control axis number X,Y,U,VMax.trip wire cylinderm250Z-axis control electronic controlMotor type X,Y,U,V all servo motorAxis controlled 4 axis simultaneousMin. control pacemm0.001Power supply 380VAC/50HzMax. working currentA12Power consumptionKw1.5Work liquid JR3AWater tankL90Filtering mode Paper filter/Italy pumpMachine weightkg2200Machine dimensionmm1800×1300×2030Size packagemm2000×1400×2400The noisedb≤70Company InformationFounded in 1958 and developed more than half a century, Jiangsu Dongqing CNC Machine Tool CO. Ltd., has now became a forge ahead modern enterprise for production of CNC machine. The R&D, production and marketing are the main component of the company. As shown on the website, the main product of the company covers five series, CNC milling machine & vertical machining center, CNC engraving machine, CNC wire cut EDM, Die sinking EDM and Micro hole drilling EDM. The company has always engaged in improving the quality, function and performance of CNC machine in the past several years. It has successfully passed identification of ISO, CE, SGS, TUV & Bureau. "Innovation, development and win-win situation" makes TOPSCNC enjoy high reputation in this line. TOPSCNC people wish to share success with you in the future! TOPSCNC CustomerOur service1) Quality & Service : We are confident in our products .Please choose TOPSCNC, we'll never let you down. 2) Price :Because we are factory,so you can get good products at the best price. 3 )Warranty: One year after shipment but consumables are not included. FAQ Q: Are you trading company or factory? A: We are factory. Q. Could your engineers go to our factory to install the machine and train our workers? A:Yes, our engineers could go to your factory and assist you. Q:What is your warranty? A:One year after shipment ,consumables are not included. Q: What is your terms of payment ? A:L/C or T/T before shipment. Contact usCompany: Jiangsu Dongqing CNC Machine Tool Co. Ltd. Address: East Suburb Development Zone, Taizhou city, Jiangsu Province, China Web: topscnc.en.made-in-china.com /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
