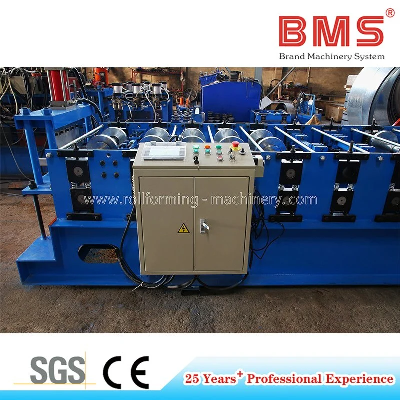

Customized Standing Seam Roll Forming Machine with Cr12MOV Cutting Material

Customized Standing Seam Roll Forming Machine with Cr12MOV Cutting Material  Product DescriptionStanding Seam Roll Forming Machine For YX65-300,400,500 Profile Machine Components                         Forming MachineWith feeding material guide, body frame made from H400(Thickness is 13mm)type steel by weldingSide wall thickness: Q235 t18mm ;Rollers manufactured from high quality 40Cr Steel,CNC lathes, heat treatment,hard Chrome Coated.Shafts Diameter=ф80mm,precision machinedGear/Sprocket driving,about 14-step to formMain Motor=7.5KW, Frequency speed controlSprocket:18 tooth;Sliding block:130*140mm;Bolt and nut: international standard 8.8                      Hydraulic Post-CuttingPost to cut, stop to cutting,Two pieces type of cutting blade design, no blankingHydraulic motor: 3KW ;Cutting pressure: 0-16MpaCutting tool material: Cr12MoV, Heat treatmentThe cutting power is provided by the main engine hydraulic station     SAMPLE  PLC Control SystemControl The Quantity And Cutting Length AutomaticallyInput The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,It Can Finish The Production Automatically.Combined WithPLC, Inverter, Touch Screen, Encoder, etcPLCSiemens (German brand)/Schneider(French brand)InverterSiemens (German brand)/Schneider(French brand)7-Inch Color Touch ScreenSiemens (German brand)/Schneider(French brand)EncoderOmron (Japan brand)Switch Bottom, Indicate Light, Power Supply, Intermediate Relay, AC ContactorThermal RelaySiemens(German brand)/Schneider(French brand)Air SwitchLG-LS(Korea brand)Cut-to-Length Tolerance≤±1 mmControl Voltage 24VAfter-Sale Service1. The warranty is 24 months after the client receives the machine.Within The 24months, we will courier the replacement parts to the client free of charge 2.We offer technical support for the entire life of our machines3. We can send our technicians to install and train the workers in the clients' factories with extra costTerms Of TradeMinimum order quantity (MOQ)1 SetDelivery timeabout 45 workdaysPort of loadingport of XiamenType of paymentby T/T or by L/CExportto more than 80 countries and regions, including South Korea,Taiwan, UK, Ireland, Greece, Australia, USA, Mexico, Brazil, Russia,Saudi Arabia, UAE, Iran , India, Singapore, Malaysia, Thailand, Indonesia, Philippines, Vietnam, South Africa, Nigeria, Egypt, etcPacking StylePacking methodMain body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation. View more products,click here...Company Profile/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
