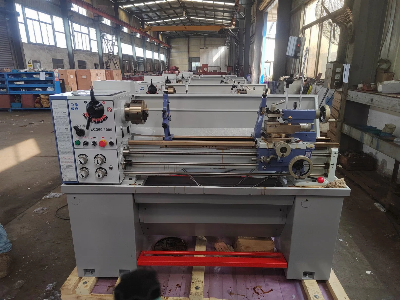

Wist Turner 360 Swing Over Bed Lathe Machine for Metal Cutting

Product DescriptionW360L LATHE MACHINE  Machine Features / Features: The surface of the bed rail is quenched and precision ground Spindle support adopts precision tapered roller bearing The main shaft gear is made of high quality and surface hardened and ground Removable saddle provides a large processing range Easy and easy to operate shifting mechanism Easy to operate the cutter box has a variety of feeds to choose from and can drive a variety of threads   Standard Accessories:3-jaw chuckHalogen work lamp4-jaw chuck with back plateFoot brakeSteady restCoolant systemFollow rest Face plate  Optional Accessories : Quick change tool postLeadscrew coverTurning toolsDigital read outTaper turning attachmentSpceification: MODELW360LDistance between centers1000mmMax. swing over bed360mmMax. swing over cross195mmMax. swing in gap500mmWidth of bed187mmSpindleSpindle speed range8step, 70-2000rpmSpindle bore38mmSpindle noseD1-4Spindle taperMT5Center height180mmThread cutting  Threads metric pitches0. 4-7mm/rev    32 thread pitchesThreads imperial pitches8-112T.P.I.    40 thread pitchesThreads diametral8-224 D.P;    23 kindsThreads module pitches0.25-3M.P;    15 kindsRange of feedsCompound rest travel95mmCross slide travel180mmLongitudinal feeds0.052-1.392mm/rev /40kindsCross feeds range0. 4-7mm/rev    32 thread pitches (Metric lathe)8-112T.P.I.    40 thread pitches        (Inch lathe)Tailstock sleeveExternal diameter32mmMax. travel100mmTaper of boreMT3MotorSpindle motor power1.5kw 380V/50hz/3PhCoolant pump power 40wOthersTool section16*16mmPacking dimension1930*760*1450mmNet/Gross weight550/600kg   Details picture:   Workshop picture:   FAQ1: How can I choose the most suitable machines? A: Please tell me your specifications, we can choose the best model for you, or you can choose the exact model. You can also send us the products drawing, we will choose the most suitable machines for you. 2: What's your main products of your company? A: We specialized in all kinds of machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine and so on. 3: Where is our factory located? How can I visit there? A: Our factory is located in Yangzhou City, Jiangsu Province, China. You are warmly welcomed to visit us. 4. What is your trade terms? A: FOB, CFR and CIF all acceptable. 5: What's the Payment Terms? A: T/T, 30% initial payment when order, 70% balance payment before shipment; Irrevocable LC at sight. 5: What's the MOQ? A: 1 set. (Only some low cost machines will be more than 1 set )  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
