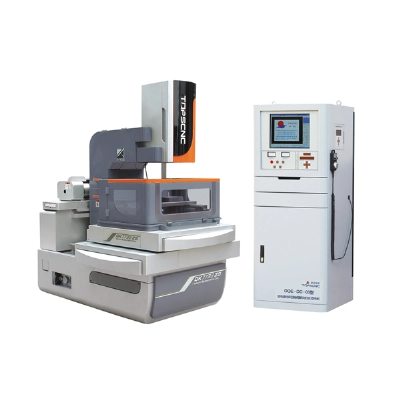

China Middle Speed CNC Wire Cutting EDM Machine Price

Technique parameters                       Technical parameterUnitDK7732ZGTable size (W*D)mm740×460Table travel (X*Y)mm320×400Max.workpiece dimensionmm800x500Table size(U*V)mm±30×±30Max. workpiece weightkg600Max. thickness of workpiecemm300Max. taper angle/workpiece thickness ±6°/80mmMolybdenum Dia.mmφ0.15~φ0.25mm(φ0.18mm recommend)Max. wire feed ratem/sec1~11.4m/sec  frequency adjustableMachining precisionmm≤0.01Max. machining speedmm2/min≥200Surface roughnessμmone time Ra≤2.5,three times Ra≤1.0 five times Ra≤0.8Linkage control axis number X,Y,U,VMax.trip wire cylinderm250Z-axis control electronic controlMotor type X,Y,U,V all servo motorAxis controlled 4 axis simultaneousMin. control pacemm0.001Power supply 380VAC/50HzMax. working currentA12Power consumptionKw1.5Work liquid JR3AWater tankL90Filtering mode Paper filter/Italy pumpMachine weightkg2200Machine dimensionmm1800×1300×2030Size packagemm2000×1400×2400The noisedb≤701.Bed with resin sand casting, two high-temperature heat treatment, effective control of the deformation of the machine2.Imported precision linear guide, imported double nut precision ball screw, long time to maintain mechanical accuracy3.C-type structure, two-way constant tension tight wire, instantaneous control tension (invention patent)4.Independent suspension of three-axis combination T-slide taper device (invention patent)5.Automatic focus lubrication, timing settings, automatic recovery of waste oil6.Noise-free drawer-type slide guard (invention patent)7.Four-axis backlash compensation and pitch compensation, grating full closed loop, to ensure the cutting accuracy of the machine, positioning accuracy and repeat positioning accuracy8.The use of low-voltage, unimpeded, constant current high-frequency power supply for processing cutting, making the cutting efficiency, surface roughness, molybdenum wire loss and other technical indicators in the leading domestic level9.Using a small pulse width, high current constant pressure source for processing repair knife, greatly enhance the stability of multiple cutting, consistency and process indicators10.X.Y.U.V axis with servo motor, equipped with 4-axis hand pulse, making the machine moving convenient, fast11.Fully enclosed cover, unique and stylish design (appearance patent)Company InformationFounded in 1958 and developed more than half a century,  Jiangsu Dongqing CNC Machine  Tool CO.  Ltd.,  has now became a forge ahead modern enterprise for production of CNC machine.  The R&D, production and marketing are the main component of the company. As shown on the website, the main product of the company covers five series, CNC milling machine & vertical machining center, CNC engraving machine, CNC wire cut EDM, Die sinking EDM and Micro hole drilling EDM.   The company has always engaged  in improving the quality,  function and performance of CNC machine in the past several years. It has successfully passed identification of ISO, CE, SGS, TUV & Bureau. "Innovation,  development and win-win situation"  makes TOPSCNC enjoy high reputation in this line.  TOPSCNC people wish to share success with you  in the future!  TOPSCNC CustomerOur service1) Quality : We take care of the product quality in order to provide good service to our customers.2)Warranty: One year after shipment,consumables are not included.3)The quotation do not include installation and education training fee.4)Engineers available to overseas repair service.5) Payment Method: T/T or L/C at sight6) Delivery time : 18--25 days 7) Packing : Standard export wooden cases 8)Port: Shanghai.Contact usCompany: Jiangsu Dongqing CNC Machine Tool Co. Ltd.Address: East Suburb Development Zone, Taizhou city, Jiangsu Province, China Web: topscnc.en.made-in-china.com /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
