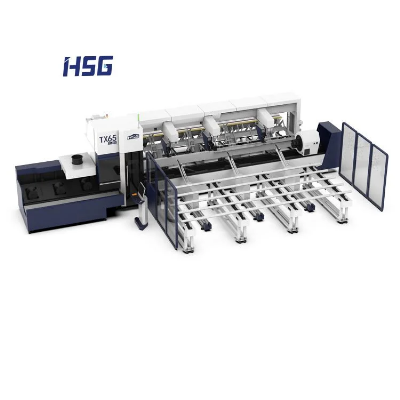

3+1 Twin Chuck Heavy Tube Laser Cutting Machines 3000-6000W

3+1 Twin Chuck Heavy Tube Laser Cutting Machine 3000-6000WTX3+1 Series is the only one tube cutting machine that has 3+1 chucks in the industry at present. It means Chuck 3 and C4 are combined as one, so, three chucks can play the same role with four chucks, but make up for the weakness of four chucks, such as, large occupied area.  It is suitable for cutting heavy or ultra-heavy tubes and long or super-long tubes, such as, 1200kg and 12000mm single tube at most.    Technical ParametersTX12036TX9036TX7026Power 3000W-6000W3000W-6000W3000W-6000WX/Y-axis Positioning Accuracy ±0.05mm/m±0.05mm/m±0.03mm/mX/Y-axis Repositioning Accuracy±0.05mm±0.05mm±0.03mmNo-load Speed60m/min60m/min100m/min Rotating Speed of Chucks 60r/min60r/min100r/minAcceleration 0.6G0.6G1.0GCutting Capacity Round tube Φ20-360mmsquare tube £20*20-250*250mmrectangular diagonal≤360mmRound tube Φ20-360mmsquare tube £20*20-250*250mmrectangular diagonal≤360mmRound tube Φ15-260mmsquare tube £15*15-180*180mmrectangular diagonal≤260mmWeight of Single Tube Loaded1200kg600kg400kgOverall Dimensions (without. Loading Racks)20500*3500*2500mm17500*3500*2500mm12500*3500*31001. Weight of Single Tube 1500kg 2.Length of Single Tube 12000mm  3.Cut Φ500mm Round Tube  4.Cut with 45° Bevel (Optional) * Heavy-duty tube refers to single tube weighing 500kg+. * Machine appearance, technical parameters, function description, data comparison shown in this page are from HSG in-house laboratory. All testing results and experimental data shall be subject to real machine. 1. "3+1" Twin-chuck Clamping TechnologyChuck Clamping Technology Chuck C3 and C4 are combined as one and can rotate or move synchronously but control its claws opening and closing independently. Except for clamping, tube supporting is also available for the combined chuck, remedying the common weakness of four chucks. Both tube clamping and supporting Correction of tube deviation   2. Multi-point Supporting for Heavy Tubes * Heavy tube is supported by four chucks concurrently * Automatically correct the tube deformation * Keep high cutting precision while cutting heavy tubes  3. HSG-X9800 CNC SystemAs the fifth generation, HSG-X9800 is specially developed for our machines equipped with four chucks.  21.5-inch touch screen Built-in tube graph database, no programming requiredCreate cutting records and reports automatically Enter its program by clicking anywhere Show special-shaped tube graphs and cutting routes in an intuitive way   4. Autofocus Cutting Head* Self-developed by HSG LASER  * Autofocus accuracy ±0.01mm* Fully-sealed structure with no dust pollution* Motor-driven autofocus, striking increase in piercing speed   5. Small Tailing Spacing between chucks is flexibly adjusted by users. All chucks can move at full stroke. Cutting demands for different length of heavy tubes are also taken into account. As a result, we can cut all entire tubes with real 0 tailing without any restriction on tube length. 0 tailing material utilization   6. Intelligent Production Line(1) Unloading DeviceTwo follow-up turning plates can convey finished heavy tubes stably from high to low while unloading and process all tubes within specified processing range, regardless of tube size or length. (2) Loading Device (Optional) Reduce labor intensity, decrease labor costs and make production more efficient.  We are strict in checking the machine quality before delivery to you.    8. High-standard Package To keep entire machine safe during long-distance sea transport, we adopt high-standard package, incl. aluminum foil, metal framework, fumigation wooden case, anti-rust oil+oilpaper, moisture-barrier bag, waterproof plastic film and filling foam.   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
