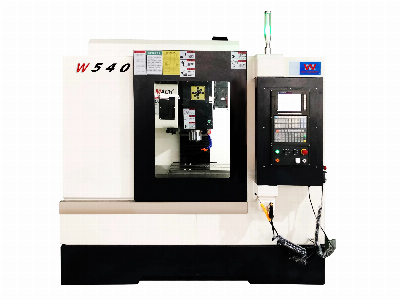

Basic Info.Model NO.W540Performance ClassificationEconomical CNC Machine ToolsCertificationCE, SGS, ISO 9001ConditionNewTable Size1100*600mmX/Y/Z Axis Travel500/380/400 mm Transport PackageWood CaseSpecificationCE ISO9001 RohsTrademarkWOriginChinaHS Code8459699000Production Capacity30set/mothlyPackaging & DeliveryPackage size per unit product 1790*1850*2195 Gross weight per unit product 2T Product Description Features: Convincing arguments: quality, efficiency and price· Imported high rigidity screw, guide rail, coupling and other moving parts, good stability and high precision.· High-inertia and high-torque feed servo and processing capacity are superior to other manufacturers' products of the same level.· Heavy duty roller screw guides on three axis featured with both heavy cutting hard guide and high speed & precision linear guide, low friction and long service life· Components with CE certification.· The bus-type system makes the electrical system more stable.· German technical basic machine body, good rigidity and high precision.· Equipped with 1ooooRPM high speed servo spindle as standard, no noise.· The Z-axis of the machine tool has no counterweights and no vibration during machining.· Conform to European Safety Standards(suitable for export) Application:This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.Product main technical parameters: SpecificationW540X/Y/Z-Axis Travelmm480/360/400Distance From Spindle Nose To Tablemm100-500Distance From Spindle Center To Column Guidewaymm390Spindle Motor Powerkw3.7/5.5Spindle Speedrpm8000Spindle Taper BT40(Φ120)Positioning Accuracymm/300mm±0.003Repeatability Accuracymm/300mm±0.0015Working Table Sizemm600×400Max. Working Table Load Capacitykg300T-Slot Qty-Width-Distancemm4-14-85X/Y/Z-Axis Rapid Feed Speedm/min24/24/24Feed Speedmm/min1-10000Dia. Of X/Y/Z-Axis Ball ScrewmmΦ32X/Y/Z-Axis Servo Motor Powerkw1.5/1.5/2.0Linear Guideway Width And Type/Qty/Block QtyX-Axis25 Ball/2/4 Y-Axis30 Ball/2/4 Z-Axis30 Ball/2/4Controller Max. Power Consumptionkva11Net Weightton200%Overal Dimensions 1790*1850*2195Company information: FAQ:1:How can I choose the most suitable machines ?A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you . 2: What's your main products of your company?A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on . 3: Where is our factory located? How can I visit there?A : Our factory is located in Yangzhou City ,Jiangzhou Province, China. You are warmly welcomed to visit us. 4. What is your trade terms?A : FOB, CFR and CIF all acceptable. 5: What's the Payment Terms ?A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . 5: What's the MOQ?A: 1 set .(Only some low cost machines will be more than 1 set ) /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
