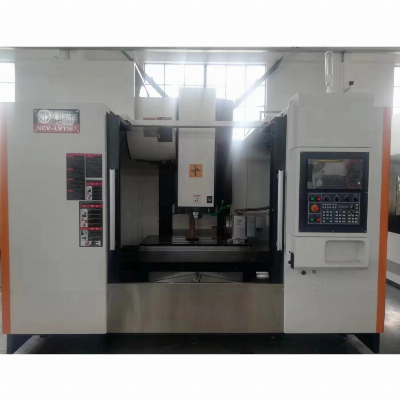

High Speed Professional CNC Machining Center LV1167 Vertical Machining Center with CE

Product DescriptionNCV-LV1167 X/Y/Z three axes use roller guide rails (most brands of vertical machining center line rail machines use ball guide rails. The three axes are driven by servo motors, which can realize one-time clamping of complex parts such as various disks, plates, shells, cams, molds, etc., to complete drilling and milling. , Boring, expanding, reaming, tapping and other processes, suitable for the production of multi-variety, small and medium-sized parts, and can show its superiority for the processing of complex and high-precision parts.We also have other models, such as NCV-LV855,NCV-LV1160, NCV-LV1270, NCV-LV1275, NCV-LV1380, NCV-LV1580.You can choose different CNC control system with different price : Mitsubishi, TAIWAN SYNTEC, FANUC Oi-MF plus(5) or others.Detailed PhotosProduct ParametersModelNCV-LV1167TravelX axis travelmm1100Y axis travelmm600Z axis travelmm700Distance between spindle and tablemm200-900Distance between spindle and columnmm620TableSizemm600*1200MAX Loadkg800T slot size 5-18*120SpindleTaper BT40 diameter Φ150speedr/min12000Three axisMotor torqueNm71.7Motor rateKW7.5/11Cutting feedm/min10Rapid feedm/min30/30/30Arm type Tool magazineTool capacityT30Maximum length/ weight of toolmm/kg300/8Maximum diameter of tool (no tool) φ78/φ120Tool change time (T-T)s2.5AccuracyPositioning accuracy (X/Y/Z)mm0.008Repeat positioning accuracy (X/Y/Z)mm0.005OtherDimensionmm2800*2500*3100Power capacityKVA2.5Weightkg7000Packaging & ShippingFAQ1. MOQ   1 set2. DELIVERY TIME       It depends on the machine and model you choose. Mostly 2 months - 4months. All machines are 100% new and not used.  3.  PAYMENT TERM    T/T 30% down payment when order, 70% balance payment before shipment.4. WARRANTY PERIOD   13 months from the date of B/L, during the warranty period, daily damage parts will be supplied freely,  the after sale service will be done by dealers . After warranty period, the spare parts will be supplied at factory price.5. Customized products     We can design and manufacture according to your specific requirements, such as change the CNC control systems, change the spindle nose taper, upgrade the standard motor and more. You do not have to hesitate to contact me./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
