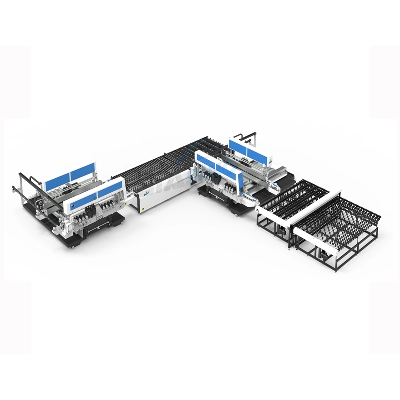

Straight Line Glass Edging Machine for Glass Polishing Machine

Glass Straight Line Double Edging MachineFeatures included in the Double Edging Machine:1. The base of the double edger is welded by a square tube structure. 2. The adjustment width is servo motor drive, with precision ball screw and linear guide, the speed is 15m/min. 3. The conveyor uses timing belt, and the upper belt is made of soft PU glue, which can process LOW-E coated glass. 4. The conveying glass is synchronously controlled by double servo motor, and the maximum conveying speed is 15m/min. 5. The grinding head motor adopts the combined structure of CDQC and Siemens. 6. The lower chamfering motor adopts the upper method to prevent the motor from burning after entering the water. 7. The crude grinding motors adopt a rotational speed of 2850 rpm and grinding speed range of 1-8 m/min. 8. Part of the sheet metal is made of stainless steel, and some sheet metal is treated with powderDetailed PhotosDouble Straight Edging Line Detais photosYou could choose the Glass edging machine's Griding Heads, the function and the quantitiesOur AdvantagesGSZM2042+GSTL4225+GSZM2025 Glass Straight Line Double Edging Machine production line is an economic,high efficiency, high precise, reliable product for all size of flat glass, laminated glass and Low-E glass on mass production.1.Opening and closing of structure adopt ball screw and straight line lead rail. 2.Grinding wheel adopts double V type guide rail with high precision, smooth operation and small vibration. 3.Semi-automatic for polishing. 4.Upper angle chamfer adopts ball screw and linear guide, precise orientation. 5.Automatically lifted for cleating bracket, which can be reached to 120mm. 6.Main transmission drive adopts mechanical frequency conversion to adjust the speed, upper posited, convenient for changing and maintenance. 7.Adopt annular synchronous belt and pneumatic positioning device for conveying glass, with smooth transmit and accurate positioning. 8.Adopt human-computer interface and PLC controlling system, easy operation.Product Parameters   Grinding head DataNameGrinding head 1# Grinding head 2#Grinding head 3#Grinding head 4#Grinding head 5#Grinding head 6#Grinding head 7#Grinding head 8#Grinding head 9#Grinding head 10#Grinding head #11Motor Power (KW)32.22.22.22.22.22.22.22.21.52.2Grinding wheelSpec (mm)Ф150  100 meshФ150140 meshФ150   240 meshФ130   240 meshФ130240 meshФ130  40 meshФ13040 meshФ15040 meshФ15060 meshФ150CE32800NameDiamond wheelDiamond wheelResin wheelResin wheelResin wheelPolishing wheelPolishing wheelPolishing wheelPolishing wheelPolishing wheelФ175LOW-ETechnical parameters of the whole machine     Parameters   Basic Parameter   Voltage (V/Hz)380/50Installed power (KW)81.2   Compressed air (kg/cm2)6Processing glass width (mm)350-4500/350-2500   Glass conveying speed (m/min)0.5-15Glass thickness(mm)3-25   Parallel difference of processed glass (mm)≤0.2Diagonal difference of processed glass(mm/mm)≤0.5/1000   Height of working surface (mm)920±20Dimensions :L/W/H(mm)See machine layout diagram   Total Weight (kg)4800      Our Customer After Sales ServiceAbout service1).reply it at once if from Ali-trademanager,if by email,it reply it within 12 hour2).deliver max. days within 15 days3).24 hours for after -sale serive4).more than 12 years experience in this kind machine field5).fluent English ,communication barrier freeAbout guarantee1).Our guarantee for 18 months.2).24 hour's technical support by email or calling3).English manual and video tutorial4).2 year quality guaranty for the machine (excluding the consumables)5).We will provide the consumable parts at an agency price6).24 hours on line service each day, free technical support.Only quality processes market,and improvement gets progress.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
