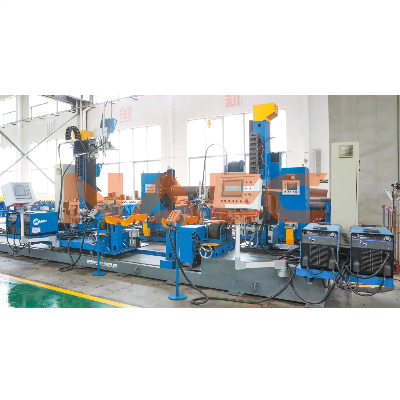

Automatic Pipe Welding Machine

Automatic Elbow Welding MachineFeatures:1. Zero-balance weight design2. Suitable for pipes from O. D. 2" to 48"3. TIG/MIG/SAW are optional4. Automatic root pass, fill, and cap pass5. PLC system control, WPS programmed6. More than 99% qualified first X-ray test.                    Production Parameter:1ModelAUTO PPAW830-A2Input Voltage3PH AC380/400v.50/60Hz3Input Power1.6kw4Pipe Diameter Range60~630mm5Linear Speed of Roller50~500mm/min6Boom lifting Stroke900mm7Boom lifting Speed420mm/min8Boom Forward & Backward Stroke900mm9Boom Forward & Backward Speed450mm/minThe pressure head type Automatic Elbow Welding Machineis specially for long pipe and fittings welding, or long pipe to pipe welding when match pipe supporter, including pressure head type welding machine, supporting rotator, pipe supporter, and Rail Skids.There are more than 40 sets of WPS program stored in the control system. Through the touch screen the operator just need to select the welding procedure to be used for various diameters of pipes with different wall thickness. And it can use T.I.G, M.I.G, or S.A.W welding process for joint automatic root pass, fill and cap pass welding.  NAEC Pipe Spool Fabrication Machines1Pipe Cutting& Beveling All-in-one Machine>Suitable for pipes not larger than 8",max.thickness:20mm>Cutting efficiency:100times/8hrs>PLC control with automatic measuring to guarantee the same processing cycle>Widely used for small bore C.S/S.S production lines2High Speed Band-saw Cutting Machine>Three models available(16"type,24"type",48"type)>PLC system control;self-measuring function with precision:±0.5mm>Using hydraulic self-centering chuck>It only takes 6 minutes to cut a 24" pipe of 25mm thickness>Widely used for C.S/S.S production lines.3High Speed CNC Pipe End Beveling Machine>Automatic self-centering chuck>Single V,double V,U type bevel>Can be matched with pipe end turning devic>High speed beveling:for example,it only takes 2.5minutes to get a 37.5 degree bevel for a S.S pipe end(diameter :610mm,thickness:25mm)>Several models available:16",24",32",48"4Two / Multi- Axis CNC Flame/Plasma Cutting Machine>High efficient pipe cutting with automatic self-measuring function, pipe end beveling, intersection line profiling for both main and branch pipe.>Five/multi-axis cutting machine can profile more complicated outlines with various bevel type>Standard machine suitable for pipes nor larger than 24''5Multi-function Pipe Fitting-up Station>Suitable for flange,elbow,tee,reducer to pipe and special T-joint fitting-up.>Light-duty type(manual) and heavy-duty type(motorized) are available.>Different types available, 8" type, 24" type, 32" type, 48" type, 60" type6Automatic Pipe Welding Station>With two welding heads>TIG/MIG/SAW are optional>PLC system control & WPS programmed>Max. efficiency fo reach welding head can be 400D.I/8hrs even use TIG/MIG technology.>Different types available, 8" type, 24" type, 32" type, 48" type, 60" type7Conveyor Handling System>used for pipe convenient transporation during in pipe spool fabrication.>Its speed is adjustable between 2M to 20M/min.For more information, please feel free to contact us. Thank you!  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
