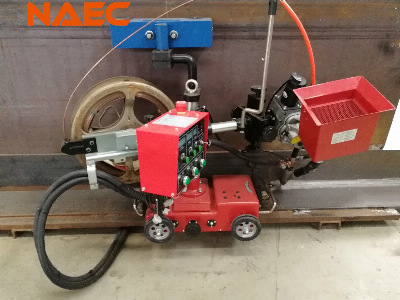

Automatic Butt /Fillet Welding Machine

Automatic Butt/Corner Seam Welding Machine   Features:1. Applicable to inside and outside corner seam welding, suitable for outside corner seam welding when the min. Distance from outer edge of the bottom to the shell is 90mm2. Applicable to butt seam welding of bottom plates3. With magnetic idler system4. Adopting sub-arc welding technology5. Suitable for both Top-to-Bottom and Bottom-to-Top Tank Construction Method6. More than 99% Qualified first X-ray test.AUTO Automatic Butt/Corner Seam Welding Machine can be applied to operate effective and efficient welding of but-joint corner seam, lap-joint butt/corner seam, T type corner seam and other different types. It mainly consists of four-wheel drive welding trolley, welding controller, welding power source, wire feeder, trolley travelling control system, welding flux system, welding seam guiding mechanism, welding torch regulating mechanism, cable and so on.When welding butt seam or lap-joint seam, trolley travels on the rail for welding. When welding the inside & outside corner seam and stiffener ring of vertical tank, because of adopting special magnetic adsorption device, it can also realize automatic welding without using rail.   Automatic Butt/Corner Seam Welding Machine has characteristics of advanced structure, full functions, flexible control, easy operation, which is a high efficient automatic welding equipment to improve welding quality.Also, AUTO has specially designed Automatic Butt/Corner Seam Welding Machine for LNG tanks, which can be used in double shells for bottom plate seam welding.  Tank Construction Machines 1Girth Seam Welding Machine>Applicable to both bottom-to-top and top-to-bottom tank erection>Adopting Sub Arc Welding technology>Standard machine suitable for shell plate width: 1.3M-2.8M>Max. Efficiency of AGW could be 30 times as manual welding2Vertical Seam Welding Machine>Suitable for tank plate wall thickness is from 10mm to 50mm>Motor frequency inverter drive system>Weatherproof control box with digital display for welding speed>Travel speed: 0~2200mm/min>Beveled gear drive reducer, good locking ability in both directions3Butt/Corner Seam Welding Machine>Applicable to butt seam welding of bottom plates>With magnetic idler system>More than 99% Qualified first X-ray test.>Suitable for both Top-to-Bottom and Bottom-to-Top Tank Construction MethodFor more information, pls contact us, thank you!  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
