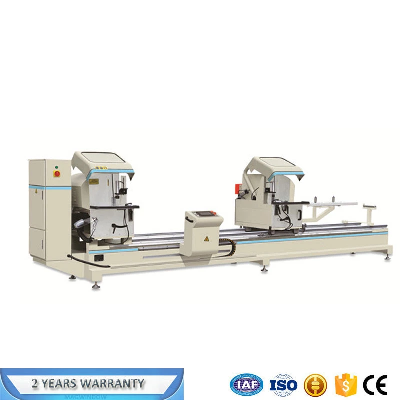

Double Head CNC Cutting Machine for Door Frame Cut Machine

factory supply LJZ2S-500*4200 Double-head Precision Cutting Saw CNC / pvc window door processing machineMain FeatureProduct Description  1.High quality carbide tipped sawblades  2.High precision main shaft to keep sawbladea running srability  3.Pneumatic-hydraulic damp device to keep the stable feeding  4.Adopt high quality guide railing system in the repositioniing precision  5.High precision linear bearing to keep the repositioning precision  6.Auto turnable machine head  7.Vertical and horizontal clamping cylinder  8.Safty protection   9.Right head feeding adopts high helical pitch ball screw-lead motion with high accurate driving,locating and smooth working.  10.Adopt CNC technique,can achieve various profiles auto cutting off  Product Parameters Saw cutting(w*h)135*300mm/135*200mmMain motor power5.9kwMain motor rotation speed2840r/minSaw blade dimension500mm*30mmSaw blade swing angle90°-67.5°-45°Working voltage380v50hzOver all dimension(l*w*h)5700*1650*1950mmWeight2000kgRepeat locating length≤0.2mmAngle cutting tolerance±5′Planeness of cutting surface≤0.10mmCutting profile suiface roughnessRa12.5UmMax/Min cutting length4200-435mmDetailed PhotosCertificationsPackaging & ShippingCompany ProfileCustomersExhibition  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
