Naec Hydraulic Lifting System for Sale

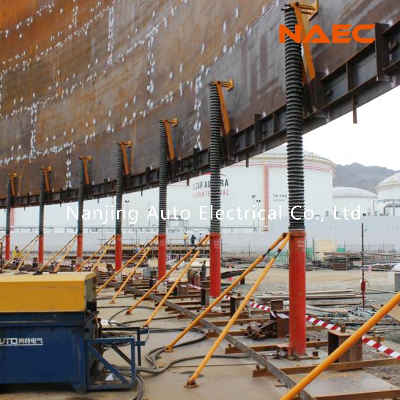

Hydraulic Lifting System HLS-AHydraulic Lifting System Hydraulic lifting system is specially developed and designed for Oil Storage Tank Construction from top to bottom. It is PLC control. Module design is introduced in this system. Each module consists of 5 cylinders. During the application, the oil cylinders could be lifted intensively or separately, which makes the whole system convenient for installation, easy to operation, and reliable in quality.It is suitable for assisting the welding of storage tanks with different capacities from 5,000M3 to 100,000M3. It can also work with NAEC series of automatic tank welding machines both outside or inside. Compared with traditional construction, most welding job is done at ground level, so it is safer. It's also easy to inspect the welding quality at each stage. It only need 20 to 25mins to lift one 2.8M height shell plate to proper position. Such high efficiency makes it been widely used in South East Asia and Middle East tank construction projects.   Features:High efficient and safe lifting. PLC control, synchronously lifting.Continuous lifting capability improves tank construction efficiency.Match with NAEC tank welding machines, can realize automatic welding of inside girth /vertical seam.Module design ensures all jacks invested can work for different diameter tanks.Floating roof can be made at the same when the tank body is erected. It can save time.Hydraulic Lifting System Oil cylinder lifting capacity 25T (18T, 100%)Oil cylinder stroke3200mmMax. Working pressure20Mpa (adjustable), 25Mpa(Max)Flow rate of hydraulic system main pump15 L/minType of hydraulic pumppiston pumpsModel of hydraulic pump10MCY14-1BDischarge capacity of hydraulic pump10ml/rModel of hydraulic pump motorY132S-4-B35Power of hydraulic pump motor5.5 KW, 380V, 50HzTurning rate of hydraulic pump motor1500 rpm/minSolenoid directional valveAC220VModule of electrical components34DM-F10B 220VSuitable transmission mediumYB-N68 anti-wear hydraulic oilRequirement of cleanliness for oil normal working conditionNAS11 (NAS1683 standard)Effective volume of oil tank480LNormal temperature range for system running15ºC-65ºCTank Construction Machines 1Girth Seam Welding Machine>Applicable to both bottom-to-top and top-to-bottom tank erection>Adopting Sub Arc Welding technology>Standard machine suitable for shell plate width: 1.3M-2.8M>Max. Efficiency of AGW could be 30 times as manual welding2Vertical Seam Welding Machine>Suitable for tank plate wall thickness is from 10mm to 50mm>Motor frequency inverter drive system>Weatherproof control box with digital display for welding speed>Travel speed: 0~2200mm/min>Beveled gear drive reducer, good locking ability in both directions3Butt/Corner Seam Welding Machine>Applicable to butt seam welding of bottom plates>With magnetic idler system>More than 99% Qualified first X-ray test.>Suitable for both Top-to-Bottom and Bottom-to-Top Tank Construction Method/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
