Wholesale Paper Cup Flexographic Printing and Die-Cutting Machine

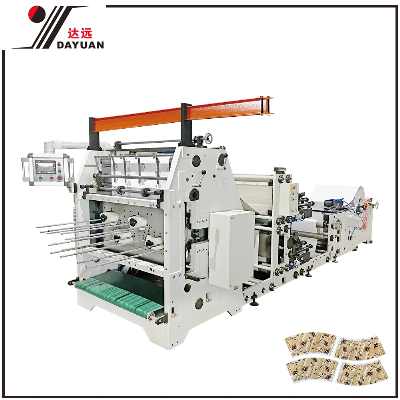

Wholesale Paper Cup Flexographic Printing and Die-Cutting MachineProduct DescriptionMachine Introduction:DAYUAN CCY1080/4-A flexographic printing and die-cutting machine is specially designed for the paper cup manufacturer,this machine includes 4 colors flexographic printing unit and die-cutting unit,higher printing accuracy,high speed of die-cutting,automatic waste cleaning, human cost saving, all these advantages would become the prior choice for the paper cup manufacturer.The machine adopted Rexroth servo control system and frequency converter,Siemens PLC, the main electrical components are all adopted from the top brand, which determined the machine runs in stable performance and high efficiency.Brief Description1)Feeding UnitRoller type front feeding structure,rounds,multipoint suction feeding,high friction,high speed,paper feeding smoothly and accurate.Left and right side baffle (computer touch screen control),the block box adopt electric adjustment,front baffle gap manual synchronous adjustment ,said baffle equipped with pneumatic line device,make the paperboard transverse positioning more accurate.The main engine adopts frequency conversion control,start and operation smoothly,saving energy can reach 30%.2)Printing UnitWith the pedal switch electrically control the printing roller to run clockwise or anticlockwise, we can have the printing plate quickly changed. .Each unit uses electric to separate and combine,pneumatic locking,pneumatic lift plate,automatic ink distributing,pneumatic brake fission positioning. When the printing unit iS open and being washed, the cylinder will brake all the gears and keep them in the original location.The machine transmission uses cross slide block structure,adopts free key connection,remove the link clearance,operate smoothly.3)Die cutting Unitdie cutting roller:centrifugal casting steel cylinder,computer dynamic balancing correction,surface grinding,hard chrome plating.(Optional:free plate die cutting slotting steel knife mold,do regular box slotting,the use of the corner cutting has box height synchronous adjustment function)Die cutting roller phase and axial adjustment,the phase adjustment adopt planetary gear type structure,PLC touch screen control and electric digital 360° adjustment,the axial transverse adopt PLC touch screen and electric digital adjustment.,the total adjusting range is ±15mm.SpecificationMachine SpecificationMachine Nameflexographic printing and die-cutting machineMachine ModelCCY1080/4-AVoltage380V/50HZTotal power18KWRoller Maximum Diameter1500mmRoller Maximum width1080mmRoller Maximum Thickness80-400gsmPunching tolerance±0.25mmMaximum punching area1060mm x 520mmMaximum punching speedup to 250 stroke/minThe minimum quantity of cylinder gearZ=110The Maximum quantity of cylinder gearZ160Metric cylinder perimeter345.5752-502.6548mm(CP= π)British cylinder perimeter349.25-508mm(CP=3.175)The maximum printing width1050mmThe size of the machine6m x 1.5m x 2mThe weight of the machine8TRunning speed60m/minStandard configuration1.automatic web guiding system;2.Tension control system;3.Hydraulic Lifting devices;4.De-culing system;5.Color mark tracking system.   Detailed Photos Mould And Sample( We can free provide if needs) Company ProfileDayuan Industrial Co. Ltdis a professional manufacturer of eco-friendly paper processing machines, following the enterprise development mission" Create Value for Customers".Founded in 1995, the company is located at Zhongshan, Guangdong, the hometown of Sun Yat Sen.At the beginning of 1990s, the production of snack boxes(such as ice cream paper cone, hamburger box, etc) mainly relies on manual operation or machines imported from European and American countries. The poor sanitation condition and product consistency, low efficiency, expensive imported machines, long delivery period and high service cost all restricts the development of domestic paper production enterprises. With rapid development of Chinese national industry, Dayuan determinedly enters this completely new industry.Shipping And PackagingShippingBy sea,or as your requirement to doPackagingBy Strong Wooden CasePackaging DimensionsWill be confirmed before booking or shippingFAQQ:Are you a factory or a trading company?A: Our company is specialized in manufacturing machinery more than 20 years.Q. Can your product be customized?A: Yes,we can design and customize according to the requirements of customers.Q: How does your factory control product quality?A: we always adhere to the "integrity-based, integrity-based" business purposes,adhering to the "pioneering spirit, strives for realism the innovation, enterprising,strives for perfection" spirit of enterprise, the production of the product specification is complete, the appearance is beautiful and easy, the machine type to be complete,can satisfy the requirements of different customers.Q: Does it easy to operate and what can i do if it doesn't work?A: First ,our machine is stable and easy to operate by one man
