Automatic Pipe Welding Machine

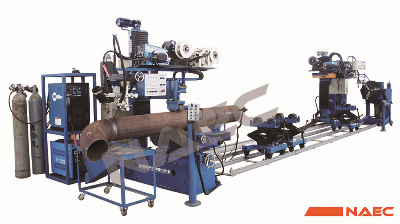

Automatic Pipe Welding machine(TIG/MIG/arc)It has features as following:1.Three models available( 8"type, 16" type,24"type);2.  Suitable for C.S./S.S./Alloy S., etc.;3. Consist of two welding machines/heads, one is column and boom type; another is pressure head type;4. TIG/MIG/SAW are optional;5.  PLC system control & WPS programmed;6.Higher welding quality and efficiency, for example, for a 24" type automatic pipe welding station, it can reach 330DI-375DI /day productivity, including handling, presetting time.It can match with the following machines to form a pipe fabrication production line:1Pipe Cutting & Beveling All-in-one Machine2Two-Axis/Six Axis CNC Flame/Plasma Pipe Cutting and Profiling Machine (Roller-bed type) 3CNC Flame/Plasma Pipe Cutting and Profiling Machine (Chuck type)4High Speed Band Saw Cutting Machine5Hign Speed CNC Pipe End Beveling Machine6Multi-Function Pipe Fitting-up Station7Heavy-duty Multi-Function Pipe Fitting-up Station8Motorized Pipe and Slip-on Flange Fitting-up Machine9Automatic Pipe Welding Station10Cantilever Type Automatic Welding Machine11Automatic Elbow Welding Machine12Heavy-duty Automatic Pipe Welding Station13Heavy-duty Cantilever Type Automatic Welding Machine14Heavy-duty Automatic Elbow Welding Machine15Automatic Two-Torch Pipe & Slip-on Flange Welding Machine16Automatic Four-Torch Pipe & Slip-on Flange Welding Machine17Large-Flage and Pipe Welding Station With Two Torches18Conveyor System19Digital X-ray Imaging System of Welding Seams InspectionPipe Spool Fabrication Machines1Pipe Cutting& Beveling All-in-one Machine>Suitable for pipes not larger than 8",max.thickness:20mm>Cutting efficiency:100times/8hrs>PLC control with automatic measuring to guarantee the same processing cycle>Widely used for small bore C.S/S.S production lines2High Speed Band-saw Cutting Machine>Three models available(16"type,24"type",48"type)>PLC system control;self-measuring function with precision:±0.5mm>Using hydraulic self-centering chuck>It only takes 6 minutes to cut a 24" pipe of 25mm thickness>Widely used for C.S/S.S production lines.3High Speed CNC Pipe End Beveling Machine>Automatic self-centering chuck>Single V,double V,U type bevel>Can be matched with pipe end turning devic>High speed beveling:for example,it only takes 2.5minutes to get a 37.5 degree bevel for a S.S pipe end(diameter :610mm,thickness:25mm)>Several models available:16",24",32",48"4Two / Multi- Axis CNC Flame/Plasma Cutting Machine>High efficient pipe cutting with automatic self-measuring function, pipe end beveling, intersection line profiling for both main and branch pipe.>Five/multi-axis cutting machine can profile more complicated outlines with various bevel type>Standard machine suitable for pipes nor larger than 24''5Multi-function Pipe Fitting-up Station>Suitable for flange,elbow,tee,reducer to pipe and special T-joint fitting-up.>Light-duty type(manual) and heavy-duty type(motorized) are available.>Different types available, 8" type, 24" type, 32" type, 48" type, 60" type6Automatic Pipe Welding Station>With two welding heads>TIG/MIG/SAW are optional>PLC system control & WPS programmed>Max. efficiency fo reach welding head can be 400D.I/8hrs even use TIG/MIG technology.>Different types available, 8" type, 24" type, 32" type, 48" type, 60" type7Conveyor Handling System>used for pipe convenient transporation during in pipe spool fabrication.>Its speed is adjustable between 2M to 20M/min.With more than ten-year accumulation of technologies, NAEC constantly provides whole solutions for pipe spool fabrication, aiming to improve clients' fabrication quality, efficiency and profit, bases on our systematic layout design, IT-based automated fabrication system and advanced fabrication software in numerous industrial construction area, such as oil and gas, refinery, petro-chemical and any hydro-carbon industry, also shipbuilding and offshore industry, even power plant and nuclear industry.NAEC is dedicated to be pipe spool fabrication expert. Out system design capability is able to minimize user's manpower consumption of one unit Dia. Inch fabrication work. Our design ability can be as low as 0.142 manhour/D. I. It means the comprehensive productivity under automatic fabrication mode can achieve up to 15 times higher than that under traditional manual mode.Our solution covers fabrication of different materials, such as C.S, S. S, Alloy steel, Duplex S. S. etc, from pipe dia. 2" to 60". Besides our automatic welding station can do automatic TIG/ RMD-MIG root pass and TIG/ RMD-MIG/MIG/ SAW fill and cap pass. We not only provide effective pipe spool fabrication solution, but also provide fast build up workshop solution, raw material prefabrication, finished spools Non-destructive testing solution, which can speed up the whole production construction cycle and guarantee project quality. Based on the above ability, our pipe spool fabrication system has been recognized worldwide and been used by many famous contractors all ov
