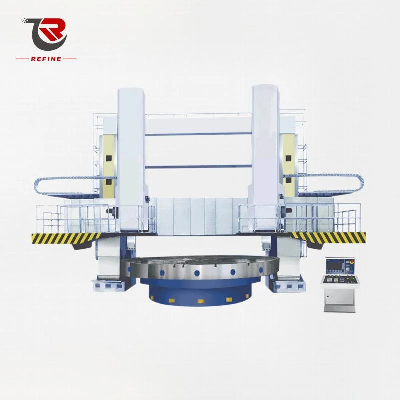

PRODUCTION DESCRIPTIONThis machine is suitable for high speed steel and alloy cutting tools, hardware for ferrous metal, nonferrous metal and some non-metallic parts inside and outside the cylinder, end, grooving of rough finish machining, etc.The beam is placed in front of the column, so that the beam does vertical movement on the column. There is a lifting box on the upper part of the column, which is driven by the AC motor. Through the worm pair and the lead screw, the beam moves up and down along the column guide rail. All large parts are made of high strength, low stress cast iron HT250, after aging treatment, eliminate stress to ensure the accuracy of the machine tool.MACHINE PICTURES PARAMETERSNameUnitCK5225CK5240CK5250CK5263CK5280Max cutting diameter of workpiecemm25004000500063008000Workbench diametermm22503200450057006300/7200Max height of workpiecemm1600/20002000/2500/31502000/2500/31502500/3150/40003500/4000/5500Max weight of workpiecet15325080/12560/80/150Workbench speed ranger/min2~630.5~450.5~400.5~400.32~32Workbench speed seriessteptwo gears no steptwo gears no steptwo gears no steptwo gears no steptwo gears no stepMain motor powerkwDC55DC55DC75DC90DC132Max workbench torquekn.m6363100150200MACHINE FEATURES WORKBENCH STRUCTURE:Table par is consisting of the workbench, table base, spindle components and transmission components.Workbench and workbench base respectively for the overall casting structure, the use of high strength and low stress cast iron, grade HT250 aging treatment has sufficient rigidity, strength and stability. Workbench bearings using high precision NN30 series double row short cylindrical roller bearings, by adjusting the radial clearance to ensure high precision rotary table, and a high working life. Workbench guide rail for constant current hydrostatic guide, to ensure long-term stable work bench. BEAM STRUCTURE:By the beams, horizontal feed transmission structure, clamping mechanism and hydraulic device and other components.Beam using high strength and low stress cast iron, aging treatment, structural stability is not deformed, the guide after IF quenching, with sufficient rigidity, strength, to ensure the accuracy of the machine. The top of the guide rail is equipped with a weight-reducing and unloading device, which reduces the resistance of the tool holder during movement. The contact surface of the beam and the column guide rail is glued with PTFE wear-resistant guide rail soft belt, which has a small coefficient of friction and greatly prolongs the service life of the machine tool. Beam placed in front of the column, so that the vertical beam in the vertical column. ELECTRIC SYSTEMAll machine control components such as contactors are installed in the power distribution cabinet. All the operating components are centrally mounted on the hanging button station. Machine electrical system and mechanical action set many chains, to ensure the machine control and mechanical movement of the reliability, safety, in the event of failure, just press the emergency button, the whole equipment power. HYDRAULIC STATIONtable static pressure system, the main transmission system, cross-beam clamping system, vertical turret ram hydraulic balance system. Static pressure system table by the oil pump, the static pressure oil is allocated to each oil pool, table height by adjusting the reach of 0.06-0.15mm. Hydraulic device pressure protection, such as the use of pressure will automatically shut down. WHY CHOOSE US /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
