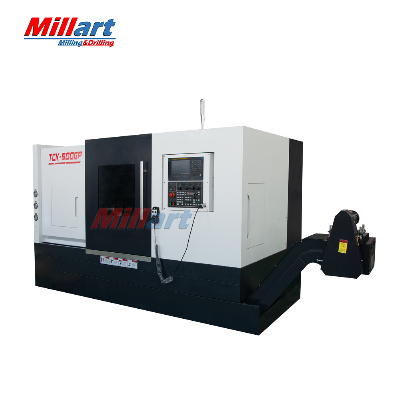

CNC Lathe Machine Slant Bed TCK500GP Turning Lathe CNC Machine The machine is suitable to process all kinds of small and middle-sized shaft and plate work piece, and could also turn various threads, circle arc, circular arc ,circular cone,inside and outside surface of revolved body.This machine is widely used in sanitary,valve ,electricall appliance,instrument,automobile,motorcycle, bearings and so on.Higher accuracy Taiwan Linear guideways.High speed spindle unit.Higher rigidity cast iron.Integrated automatic lubrication45 degree One-piece casting slant bed.Specifications:SpecificationsTCK500GPMax.swing over bed (mm)Φ500Max.turning diameter (mm)Φ480Max.swing over cross slide (mm)Φ320Max.turning length (mm)580Spindle noseA2-8Chuck size10"Spindle motor power (kw)11-15Max.spindle speed (rpm)2600Spindle bore (mm)Φ87Max turning Dia Bar (mm)Φ72X/Z axis leadscrew (mm)32/40X axis limit Travel (mm)250Z axis limit Travel (mm)620X/Z axis motor torque (N/m)21/21X/Z axis linear guideway (mm)45/45X/Z axis accuracy (mm)0.008X/Z axis repeat accuracy (mm)0.005Tailstock quill diameter (mm)Φ100Tailstock quill travel (mm)120Tailstock travel (mm)670Tailstock taperMT5Machine dimension (mm)2580x1040 x1460Weight (kg)3500Standard accessories:Fanuc 0i TF Control system6'' Hollow hydraulic chuck12 stations hydraulic servo turret Hydraulic tailstockX,Z axis Linear guide wayChain type chip conveyorSchneider electrical componentsMPGCutting Cooling systemWork lampCentral auto-lubricating systemHeat exchanger in cabinetTri-color warning lampFull closed coverTools and tool boxLevelling bolts and blocksOptional accessories:12 stations BMT power turret from Taiwan Power head + Radial power headHydraulic steady rest C axis/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
