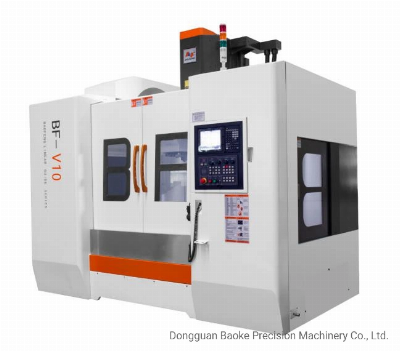

Bf-V10 High Speed Vmc Precision CNC Milling Machine

SpecificationTRAVELX/Y/Z axis travel1000x600x650mmSpindle nose to table110-760mmSpindle center to column670mmPositioning accuracy±0.003/300mmRepeated positioning±0.002/300mmSpindleSpindle taperBT40Spindle transmissionDirect driveSpindle speed12000 rpm/minControllerCNC controlFanuc 0i-MFSpindle motor11/15 kW 12000 rpm/minX/Y/Z motor3.0/3.0/3.0kwTableTable size ( W x L )1200x600mmT slot5-18x100mmTable load7700kgFeedX/Y/Z rapid feed rate36/36/36m/minX/Y/Z linear guidewayRoller type 35/45/45X/Y/Z ball screwball type precisionMACHINE DIMENSIONDimension3200*2900*3290mmWeight6500kg       Main parts list:               Item                  BrandSpindleTaiwan-RoyalSpindle bearingJapan-NSKBall screwTaiwan-Hiwin/PMI-C3Linear guidewayTaiwan-HiwinPneumatic partsJapan-MitsubishiOptional configuration:- SIEMENS/FANUC/Mitsubishi CNC Controller- 24T/30T Arm type tool magazine- Coolant through spindle- 4th/5th axes rotary table- Chip conveyor- Tool setter- Oil mist collectorFeatures:-- Base, worktable, slide, column, headstock, etc are made up of high rigidity HT300 gray cast iron material.-- X/Y/Z-axis adopts Germany Rexroth guideway-- X/Y/Z-axis servo motor connects Japan NSK high precision ball screws through Germany R+W coupling respectively-- Z-axis servo motor is with automatic self-braking function-- Taiwan spindle unit with 12000rpm, the max. spindle speed can be achieved to 12000rpm. NSK Ceramic bearing for the spindle with P4 grade.-- Taiwan brand Arm type tool magazine with 24T/30T capacity-- Equipped with large flow cooling pump and large capacity water tank, fully ensure the cooling, the power of the cooling pump is 120W,20L/min, high-pressure punching and provide the full cooling.    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
