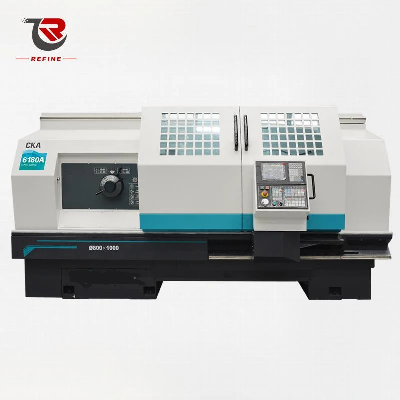

PRODUCTION DESCRIPTIONThis machine tool is a CNC control horizontal lathe controlled by two coordinates (Z) and (X). It can automatically complete the cutting of internal and external cylindrical surface, conical surface, circular arc surface, end face, grooving, chamfering and other processes for all kinds of shaft and disk parts, and can turn metric straight thread, end thread and inch straight thread and taper thread and other various turning processing. The CNC system of FANUC, Siemens, GDSU and other well-known companies at home and abroad can be used to process the workpiece repeatedly. Suitable for the production of many varieties, small and medium-sized batch products, especially for complex, high-precision parts can show superiority.MACHINE PICTURES PARAMETERSITEMCKA6136CKA6140CKA6150CKA6163CKA6180CKA61100CKA61100MCKA61125MMax. Swing Dia. Over Bed360mm400mm500mm630mm800mm1000mm1000mm1250mmMax. Swing Dia. Over Carriage180mm200mm280mm320mm490mm700mm630mm880mmWorkpiece Length 750mm/1000mm750-2000mm1000-5000mm1500-6000mmWidth of the bed300mm400mm550mm755mmWorkpiece Weight 200kg400kg1000kg8000kgSpindle Power5.5kW7.5kW11kW22kWSpindle Bore Dia.52mm82mm100mm130mmSpindle Speed20~2500rpm7~2200rpm10~1000 rpm2~500rpmDia. of Tailstock Sleeve63mm75mm100mm200mmVoltage3PH 380V 50HZSTANDARD ACCESSORIES & OPTIONAL ACCESSORYSTANDARD ACCESSORYOPTIONAL ACCESSORY1.Fanuc System1.Siemens System2.Slide guide2.Chuck Protection3.Manual Tailstock3.Hydraulic Tailstock4.4 Stations of Vertical Toolpost4.6/8 Stations of Vertical Toolpost5.Manual 3-Jaw Chuck5.4-Jaw Chuck /Hydraulic Chuck6.Cooling Pump6.Steady Rest 7.Water Tank7.Follow Rest8.Wrench8.Flat PlateMACHINE FEATURESThe machine control system adopts FANUC 0I-TF Plus(5) system, and the two axis motor adopts FANUC AC synchronous servo motor. Stanard : 3-Jaw chuckOptional: Hollow hydraulic chuck Solid hydraulic chuckThe tailstock of this machine tool moves horizontally by one-way guide rail and is adjusted by screw Optioanl: Hydraulic Tailstock The machine is flat bed layout, using single triangle guide rail layout, resin sand casting process, providing better processing technology. PACKING & SHIPPING WHY CHOOSE US /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
