CNC Lathe, Numerical Control Lathe Digital Controlled Lathe, Turning Lathe Machine

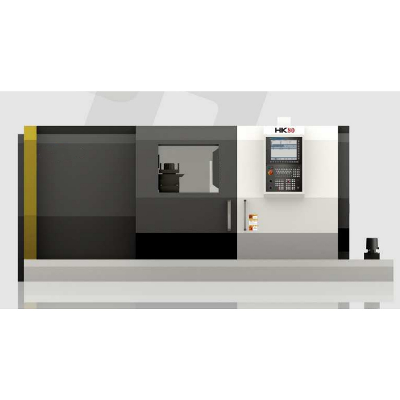

Product DescriptionHK80 series simple CNC lathe, using high strength cast iron bed, the guide rail hardened, precision grinding, with wide bed guide rail, high rigidity, good accuracy retention and other characteristics; Using Beijing KND, FANUCOiMate, Guangzhou GSK988T, Guangzhou GSK980TDb and other CNC systems;It can automatically complete the processing of internal and external cylindrical surface, arbitrary conical surface, circular surface, end face, male inch thread, etc.Equipped with four-station electric tool holder, can meet different needs of processing; Protective doors that can be opened and closed are conducive to safe and civilized production;The centralized machine tool operation panel makes the programming operation extremely convenient. It is suitable for the processing of multi-variety, small and medium-sized batch products, and shows its superiority for complex and high-precision parts. Product ParametersSpecificationsPARAMETERS  I T E M SUNITHK80/1000CapacityMax.swing over bedmmφ800Max.swing over slidemmφ480Max.turning dia.mmφ800Distance between centersmm 1000Max.turning lengthmm 760Bed ways widthmm 650SpindleSpindle nosemmA1-11Spindle thru-hole φ105Spindle speedr/min20~204     39~354   71~642    124~1000Spindle motor powerkW15(Freq.changing motor)FeedsX/Z-axis travelmm430/760X/Z-axis motor powerkW4.7/5.5X/Z-axis screw diammφ40/φ50TailstockQuill dia.mmφ100Quill travelmm250Quill taper(manual) Morse   No.5TurretX/Z-axis rapid traverse ratem/min6/7Number of tool stations 4Tool sectionmm32×32Others Power  sourcekVA 40Dimensions(L×W×H)mm  4300×2210×1855Mchine weightkg 7200Detailed PhotosHydraulic shift, easy to operate, reliableZ-feed adopts direct connection structure, high transmission precision and accurate positioningVertical four-station electric turret, high positioning accuracy   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
