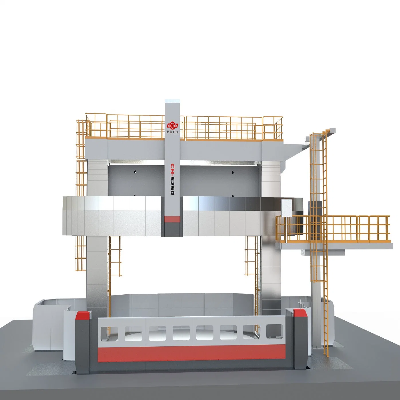

Ckx5280 CNC Double Column Vertical Milling and Turning Machine

Product DescriptionAPPLICATIONThe machine is suitable for processing materials such as different ferrous metal, non-ferrous metals, non-metal, etc.lt can carry out turning of inner/exterior cylinder surface, conical surface, end-face, rotary curved face, thread, inner and exterior groove as well as constant speed cutting. With certain attachment head adopted, the machine can also carry out milling, boring, drilling, tapping, counter boring, etc. The machine is mainly applied in large sized rotary part machining for industries such as metallurgy, mining, energy, power, ship-building, transportation, etc.The main performance characteristics:Table adopts high accuracy double row roller bearing in radial for centering; in axial pump per pocket hydrostatic guide way of constant flow s adopted for supporting.Main drive adopts wide field magnet DC motor; 2-step mechanic gearbox speed change.Milling and turning table can adopt double AC spindle motor drive; can realize high precision electric gap elimination. Toolhead moves on crossrail, load relief beam is adopted to reduce the ben ding of crossrail guide way and improve travel accuracy.Toolhead ram travel adopts ballscrew pair transmission; guide way adopts pump per pocket closed type hydrostatic guide way of constant flow.Milling spindle is housed in toolhead; AC spindle motor drive; 2-shift gearbox speed change.X/Z can adopt optical scale for full closed loop inspection.In table center of turning machine adopts encoder for constant speed cutting and thread turning. In table center of milling and turning machine adopts high precision radial grating for full closed loop inspection.Product Parameters ItemUnitModelCK/CKX5235CK/CKX5240CK/CKX5250 CK/CKX5263CK/CKX5280CK/CKX52100 CK/CKX52125Max turning diametermmΦ3500Φ4000Φ5000Φ6300Φ8000Φ10000Φ12500Max turning heightmm250025002500/40004000/50004000/70005000/70005000/7000Table diametermmΦ3150Φ3600Φ4500Φ5700Φ6300/7200Φ7200/8000Φ8000/10000Table loading capacityt4040/5050/6363/100100/160/250160/250/400250/400/500Highest table turning speedr/min6363/404031.525/15.515.515.5/12Max table torquekN.m63/8063/80/125125/160160/315315/400/530530/630630/750Ram section sizemm2250250250/300300/320320/400400/500400/500Max ram travelmm150015001600/20002000/25002500/31502500/3150/40002500/3150/4000Milling spindle powerkW25/3125/3125/313131/4431/4431/44Milling spindle max torque N.m750/900750/900750/1000100010001200/20001200/2000Milling spindle highest speed r/min20002000200020002000/15001200/15001200/1500Turning main motor powerkW60/6260/6274/8181/125125143143/166Detailed Photos       /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
