Hot Foil Stamping Die-Cutting Machine (TYMB750)

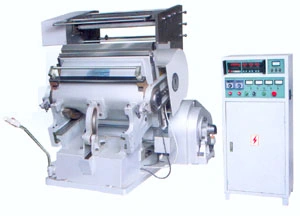

Hot Foil Stamping &die-cuttingMachine photo:Description:This machine is a kind of special equipment used for thermo-printing and creasing various products, such as cardboard, leather and plastic etc. It is suitable for thermo-printing various paper products with electrochemical aluminum and also used as a creasing and cutting machine for mould cutting and creasing cardboard cases and boxes. Concave- convex thermo- printing of various high-grade and fine printed products can also be conducted on this machine for obtaining stereoscopic exquisite and beautiful packing and decorating products. The machine is controlled by a chip microprocessor, with the foil-feeding rubber roller of electrochemical aluminum driven by the separately set length and leapfrog parameters to make the most effective using of electrochemical aluminum. The purpose of this model is to ensure that the system runs stably and reliably so that the machine can be maintained by anybody. The main Specification: Model:  TYMB750   TYMB930   TYMB1100Plan metric effective area: 720*500mm 930*670mm 1100*800mmArea of large gilding board: 650*460mm 920*650mm  1000*750mmArea of small gilding board: 750*460mm 850*550mmTotal electro hermal power: 6.5kw 13kw 19kwThermoregulation range: 1-150 degree  1-150 degree 1-199 degreeContinuous thermo printing speed: 25(Storks/min)22(Storks/min)  20(Storks/min)Volume of common foil-feeding: 1-500mm 1-600mm  1-800mmLeapfrog frequency:   1-99 times  1-99 times  1-99 timesFoil-feeding resolute: 1mm 1mm  1mm Overall Dimension: Motor dates:   2.2(kw)/6(Series) 4(kw)/4(Series)  4(kw)/6(Series) Net weight: 2000kgs 3500kgs 5000kgds The machine size: 1300*1500*1800 1830*1670*2200mm  2000*1950*2300mm   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
