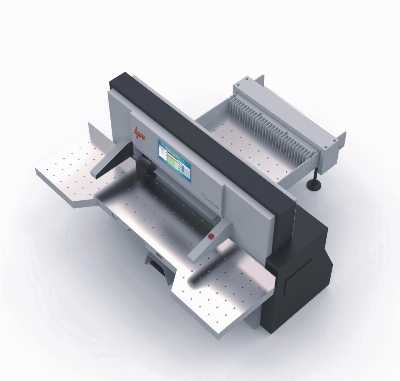

High Speed Programmatic Paper Cutter Fully Automated Digital Control Paper Cutting Machine

SQZK92S16 Program Control Paper Cutter      Computer System1. The up-to-date 16" Widescreen LCD, full touch screen; Inovance PLC control.2. Eight languages to choose.3. Metric system and British system two units, show the dimensions of the front knife and the back knife. 4. Step less speed adjustment function with latest technology , to make the cutting speed from 30 to 48 times within 1 minute , no need to change knife angle for different cutting material.5. Position resolution of backgauge is 0.01mm, closed-loop control, the locating error is less 0.01mm; No need to adjust locating error. Max. backgauge speed is 30-38m/min. 20-30 m/min . 15-20 m/min. 12-15 m/min .(four class to adjust).6. The program storage capacity is 300 programs. Every program can store 299 items cutting sizes. The storage memory has a maximum of 40 years.7. With USB, transmit data, to convenient operator make programming and arrangement via PC.8. Equipped with fault diagnostics and non-repeat safety guards.it can detect all the position switch state and dynamic  prompt switch failure.make the machine more convenient maintenance.9. The backgauge is driven by a Inovance servo-motor with four speed levels.10. Use Italy oil pump and hydraulic system.    Machine Performance1. Knife-seat guiding structure with sliding block type, cam type for adjusting-knife mechanism.2. Clamp press paper stack through hydraulic system, the spring re-position.3. Worm gear drive mechanism, hydraulic clutch, mechanical brake.4. Hydraulic system adopts Germany advanced technology, the hydraulic units are ISO approved, Italy oil pump.5. One-piece, slot less and chrome-plated cast iron work table is sturdy and easy to maintain.6.Import ball screw with double linear guides to drive backgauge.7.High safety infrared protection device according to CE standard.8.Main electronic units are from French TE and Japanese ORMON famous international brands.  Technical ParameterModelUnit92Max.Cutting Widthcm92 inch36.2Max.Cutting Lengthcm92 inch36.2Max. Cutting Heightmm120 inch4.7Min. Cutting Size(without false clam pplate)mm25 inch1Min. Cutting Size(with false clamp plate)mm90 inch3.5Front Table Lengthcm63.2 inch24.9Max.Clamp PressureN30000Max. Cutting Speedtime/min42Main MotorKW3Net WeightKg2300Gross WeightKg2500Packing Size(L×W×H)cm228×140×188   Configuration ListingNo.NameBrand, specification & modelOrigin of brand1Background LCD16''Color touch InterfaceChina2PLCInovanceChina3Backgaugeposition motorInovance  servo motorChina4Pick-upAutonicsKorea5Limit switchTEFrance6Guarding motorTEFrance7Air switchTEFrance8AC ContactorTEFrance9Miniature relayTEFrance10Switching powersupplyTEFrance11Power switchCANSENChina12Press-buttonTEFrance13Ball screwHigh accurateChina14Linear guiderHigh accurate double linearguidesTaiwan15Hydraulic systemCombination ValveGermany16Oil PumpHPItaly17BearingNSKJapan18Work TableSlotless and plated chromiumwork tableChina19PhotocellAllen-BradleyChina20knife        HSSChina/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
