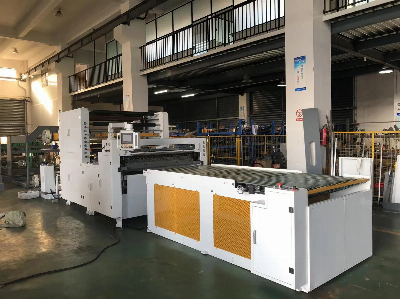

Double Layer Sandwich Paper Hamburger Wrapping Papersheeting Cutting Machine

Double Layer Sandwich Paper Hamburger Wrapping Paper Hot Dog Paper Sheeting Cutting Machine Paper SheeterMax. Unwinding Width800mmMax. Unwinding Diameter1200mmMax. Slitting Length1999mmUnwinding Shaft3" (76mm)air expanding shaftMaterial ThicknessPaper in 28-750gsmPrecision±0.2mmMax. Machine Speed100 times/minDimension6500*1800*2500Weight5500kgs  Specification:Adopts Weinview PLC & Touch Screen and meter counter. All the working parameters can be displayed on the control monitor. Only need to setup the material thickness and initial tension data, the Micro-computer will calculate the accord data, and keep machine working automatically until the end.Adopts with YASKAWA frequency inverter motor which is used to control the sheeting cutter movement, solid stable.Adopts with Servo motor from Yaskawa for the material feeding. The precision can be highly controlled in 0.2mm. Adopts with automatic braking device: 20kg/ m2 * 1PC to control the material feeding tension.Adopts with special treated alloy sheeting cutter, which has a merit for long working life and durance. Adopts automatic tension control system which is used to keep a constant tension for material working.All transmission rollers have been dynamic/static balance treated.Equipped with auto counting system.All the electric circuit is in conformity with the CE certification.Equipped with emergency stop switch to realize emergency stop at any point of machine.ComponentsUnwinding Section3" air expanding rewinding shaftElectromagnetic Brake from TaiwanFully automatic tension controllerDouble Layer Pneumatic Loading System to load heavy jumbo roll more easyFeeding SectionFeeding motor is controlled by servo motor.The roller pressure is controlled by the air system, which is adjustable.Feeding pressure is adjustable by the air circuit.Rubber roller hardness is 85 degree and diameter is 100mm.Sheeting SectionThe upper cutter is stable and lower cutter base is movable.The cutting moving is controlled by a inverter motor.Controlling SectionWeinview PLC & Touch ScreenTrimmed Waste EdgeEdge Waste Blower with Expulsion TubeConfigurationNameModelPiecesRemarkComputer SystemWeinview PLC+HMI 1Set WeinviewMotor 2 SetsSiemensFrequency Inverter 2 SetsYASKAWA From JapanUpper/Lower Round Knife 5 SetsChina Cylinder  From TaiwanAir Expanding Shaft3''1PC From ChinaMagnetic Brake 1 SetFrom TaiwanElectromagnetic valve SMCJapanPhotocell Tracking One SetFrom TaiwanLow Voltage Electrical Switch   Blower1.2KW1 SetChinaBear NSKJapanPackaging & ShippingPackaging Details:Double Layer Sandwich Paper Hamburger Wrapping Paper Hot Dog Paper Sheeting Cutting Machine Paper Sheeter is with Film wrapped and then exporting standard wooden case, 3 machines can be loaded in a 20 ft container, one year guarantee time, whole life technician support, a set of tools, a box of vulnerable parts, English operation manual. Delivery Details:  Within 45 days after receipt of 30% payment by T/T.Double Layer Sandwich Paper Hamburger Wrapping Paper Hot Dog Paper Sheeting Cutting Machine Paper Sheeter.Company Information    Jota Machinery Industrial Co.,Ltd is a long established engineering company combined with science,research, development, production andmanagement, It is specializing in plastic & paper packing machinery with more than 30 years experiences in China.    We supply all kinds of packaging machines tp satisfy the stringent requirements for Health and Safety, and meet the latest European CEstandards. We provide customers with professional pre and after sales services, and to guarantee complete satisfaction of the equipmentsinstalled all over the world.     By Superior quality to create brand, prefect service to make satisfactory. We warmly welcome the friend from home and abroad to work with usto win a mutual benefit  future.Our ServiceQ1:what's payment terms ,trade terms you accept ?Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer fob ningbo price .but we also  accept otherway like L/C , wetern union ,and do CFR&CIF etc.Q2.Does it easy to operate and what can i do if it doesn't work?First ,our machine is stable and easy to operate by one man ,what you do is just learn some basic thing like loading the jumbo roll paper,startthe machine and cutting the paper.And we will  sent you manual and video ,we suggest you to come to visit our factory to learn more thing byyourself , and if there is something goes wrong , you can call us ,video-chat ,email us .And we will give solutions within 36 hrs .Our engineer alsocan be distributed to overseas as you required.Q3. If the machine's spare parts broken ,where can i get ?We will give you the spare parts which is vulnerable , and some critical parts like gear box , our quality is good ,in case  it broken within one year,we will sent you for free. FAQ1, Are you trading company or manufacturer?We are manufacturer, and also provide the business solution to all the friends.2, Do you have quality certificate?Yes we
