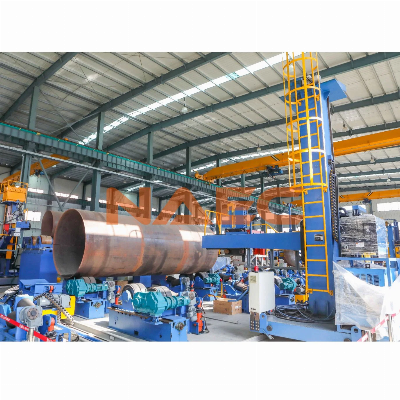

Offshore Pipe Pile / Pipe Rack Fabrication Solution

NAEC---- Minimize the outdoor work, Maxmize customer's profit!Suitable for industries of: OIL AND GAS, REFINERY FACILITIES, OFFSHORE &SHIPBUILDING, POWER PLANT, etcReference: CCC, L&T, PEC, Rotary Engineering, Petrol Steel, JSL, etc.   Offshore Pipe pile / Pipe Rack Fabrication Solution  We provide solutions for: 1, Steel plate cutting and edge beveling 2, Single shell inside and outside longitudinal seam welding 3, Multi-section shells fitting-up $ handling 4, Inside and outside circumferential seam welding 5, Conveyors system & production line Configuration: -Inside longitudinal seam welding machine -Outside longitudinal seam welding machine -Fitting-up station -Inside circumferential seam welding machine -Outside circumferential seam welding machine -Pipe splicing lines for pile rack -Heavy-duty manipulator   1  Steel plate shot blasting and painting treatment2  Steel plate cutting and edge beveling3  Single shell inside and outside longitudinal seam welding4  Longitudinal seam gouging machine5  Multi-section shells fitting-up & handling6  Circumferential seam preheatment device7  Inside and outside circumferential seam welding8  Circumferential seam gouging machine9  Shell splicing/ growing-up machine         10  Shell/ tube cuttig and profiling machine      NAEC Pipe Spool Fabrication Machines1Pipe Cutting& Beveling All-in-one Machine>Suitable for pipes not larger than 8",max.thickness:20mm>Cutting efficiency:100times/8hrs>PLC control with automatic measuring to guarantee the same processing cycle>Widely used for small bore C.S/S.S production lines2High Speed Band-saw Cutting Machine>Three models available(16"type,24"type",48"type)>PLC system control;self-measuring function with precision:±0.5mm>Using hydraulic self-centering chuck>It only takes 6 minutes to cut a 24" pipe of 25mm thickness>Widely used for C.S/S.S production lines.3High Speed CNC Pipe End Beveling Machine>Automatic self-centering chuck>Single V,double V,U type bevel>Can be matched with pipe end turning devic>High speed beveling:for example,it only takes 2.5minutes to get a 37.5 degree bevel for a S.S pipe end(diameter :610mm,thickness:25mm)>Several models available:16",24",32",48"4Two / Multi- Axis CNC Flame/Plasma Cutting Machine>High efficient pipe cutting with automatic self-measuring function, pipe end beveling, intersection line profiling for both main and branch pipe.>Five/multi-axis cutting machine can profile more complicated outlines with various bevel type>Standard machine suitable for pipes nor larger than 24''5Multi-function Pipe Fitting-up Station>Suitable for flange,elbow,tee,reducer to pipe and special T-joint fitting-up.>Light-duty type(manual) and heavy-duty type(motorized) are available.>Different types available, 8" type, 24" type, 32" type, 48" type, 60" type6Automatic Pipe Welding Station>With two welding heads>TIG/MIG/SAW are optional>PLC system control & WPS programmed>Max. efficiency fo reach welding head can be 400D.I/8hrs even use TIG/MIG technology.>Different types available, 8" type, 24" type, 32" type, 48" type, 60" type7Conveyor Handling System>used for pipe convenient transporation during in pipe spool fabrication.>Its speed is adjustable between 2M to 20M/min.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
