Customized 5 Axis CNC Flame/Plasma Pipe Cutting and Profiling Machine

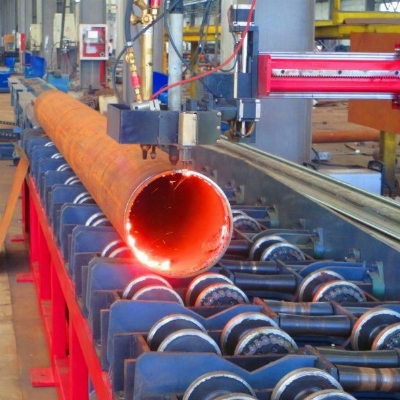

Five Axis CNC Flame/Plasma PipeCutting and ProfilingMachineProduct DescriptionCNC flame/plasma pipe cutting and profiling machine can be used for the cutting and beveling with various pipe materials in fixed angle, different pipe end shapes, grooves and holes. It is consists of CNC rotating and lifting roller conveyor, CNC vertical cutting carriage, guide rail, electric control system, air course system, plasma system, loading/unloading mechanism, etc. By feeding the workpiece onto the CNC rotating/lifting roller conveyor, and then lowering the conveyor leaving workpiece onto the rotating roller, it is able to cut and bevel pipes automatically with selected parameters through Programmed Control System.The combination of automatic programming and manual programming can realize the jacking cutting, with the function of cutting uprightly, cutting in any angle (manual adjustment), cutting with angle turning, multi-section elbow unfold cutting, intersection line cutting of plug-type/riding-type, etc. It is with characteristics of reasonable organization, easy operation, and high efficiency.Model: EPCBM-24Ab/32Ab/48Ab/60AbProduct features1, Several models available (16"type, 24" type, 32" type, 48" type, 60" type);2, Cutting precision: + 1mm;2, Beveling Speed: ≤2Min /pipe bevel (DN200 SCH40)3, PLC system control;4, High efficient pipe cutting with automatic self-measuring, pipe end beveling; intersection line profiling for both main and branch pipe function;5, Multi-axis cutting machine can profile more complicated outlines with bevel;6, Widely used for C.S / Alloy Steel pipe fabrication.Product ParametersPipe diameter applicableDN100-600 (φ114-630); DN150-800 (φ159-830); DN200-1200 (φ219-1219); DN400-1500 (φ406-1524)Applicable wall thickness≤25mm (cutting up to plasma generator) ; ≤60mm (flame cutting)Materials applicableCarbon steel, alloy steel, stainless steel and cryogenic steelCutting length6350MM or as per requestBevel ShapeV typeCutting directionLengthwiseRoller benchStructureThree line roller with fixed distanceRoller bench length7000mm or 12000mm (or as per request)Driving SystemServo motor + precision reducerRev0-2.5M/Min (VF stepless speed adjustment)Roller bench Material45#,Surface bluing treatmentRotation Accuracy
