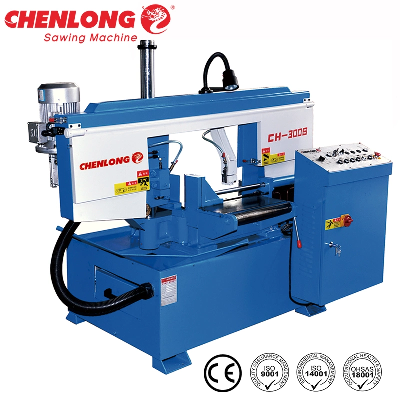

2.2KW Miter Horizontal Metal Cutting Band Sawing Machine (CH-300S)

The CH-300S semi-automatic band saw is equipped with a 60-degree swivel head mitering capability which makes it ideally suited for jobs with many angle cuts and limited workshop space.  It is specially designed for the angle cut of tubes and profiles, and also suitable for the cut of  90 degree solids, tubes and profiles with a variety of materials including, but not limited to, iron, steel, aluminum alloy, stainless steel and bearing steel.★ Semi-automatic operation, easy to understand and use control panel;★ Easy to read angle scale with angle locking screw;★ Hydraulic downfeed rate is adjustable and controlled by stepless regulating valve;★ During cutting process, saw frame quick approach to workpiece and slow down downfeed rate before blade touch the workpiece★ The saw use roller bearings and carbide blocks to guide the blades which extend the blade life.  TECHNICAL SPECIFICATIONSMODELCH-300SCutting Capacity0°roundφ300mm φ11-4/5"0°rectangle350mm W x 300mm H13-7/9" W x 11-4/5" H45°roundφ230mm φ9" 45°rectangle180mm W x 300mm H7" W x 11-4/5" H60°roundφ130mm φ5-1/8" 60°rectangle130mm W x 300mm H5-1/8" W x 11-4/5" HDrive CapacityBlade Motor2.2KW3HPHydraulic Motor0.75KW Coolant Pump 0.06KW Blade Speed20~80m/min by Inverter66~262fpm by InverterBlade Size3650x27x0.9mm Workpiece ClampingHydraulic Vise Blade TensioningManual Main DriveWormwheel Drive Table Height720mm Machine Size (LxWxH)2100x1200x1600mm Product PhotosOur CertificateAbout UsOur ExhibitionOur WarehouseFAQQ: Are you a factory or trading company?A: We are band saw factory providing machines and blades to thousands of clients globally since 2000.Q: What are the payment options?A: We accept T/T and LC at sight.Q: How to receive a quotation?A: Please contact us through phone, email, WhatsApp or Skype and we will be happly to serve you.Q: How to choose a suitable type/model of machine?A: Please send us your detailed requirements, and we will recommend suitable model for you.Q: Do you accept customized order?A: Yes, we can not only customize band saw machines, but also integrated automatic sawing production line for you.Q: Do you have overseas service?A: Normally we provide online free service for clients. If clients requiest, we can send staff to offer paid service overseas. Q: What is your warrenty?A: Chenlong brand products are covered under a 1-year warrenty. During guaranteed period, we provide free-parts except for the quick-wear parts./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
