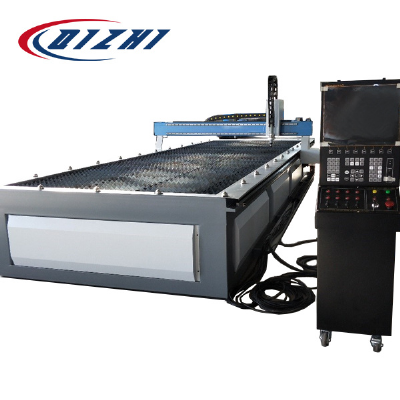

Qizhi CNC Plasma and Flame Automatic Plate Cutting Machine

Automatic CNC flame/plasma cutting machine   Automatic CNC flame/plasma cutting machine is designed for heavy duty industry plate processing, it can be customized based user's requirement.The cross beam adopts wide reinforced box structure. The end beam adopts low center of gravity design with symmetrical structure and good stability. All structural welds are stress relieved to ensure overall accuracy and good dynamic balance.The traveling track of the cart is made of 24kg-50kg high-strength heavy rails, and the top surface and both sides are finished by milling. Each length is 2 meters and can be infinitely lengthened. Imported planetary gear reducer, high-precision gear racks without gaps to ensure the stability of the machine. The main electrical components and parts are made of international brands.  SpecificationsModel Universal TypeHeavy duty TypeFine Type Track gauge (mm)300040005000600070008000900010000 Standard length(mm)800012000140001400016000160001800018000 Effective cutting width(mm)22003200420052006200720082009200 Effective cutting length(mm)600010000120001200014000140001600016000 Cutting torchStandard design is 1 flame torch and 1 plasma torch, or 2 flame torchesCutting thicknessDepends on the power source, we can integrate China reliable power source or HyperthermDriven typeBilateral driven, except 3000mm machineControl systemShanghai Jiaotong University/ HyperthermNesting softwareFASTCAMCutting speed0-6000mm/minTravel speed0-12000mm/minOptional functionFlame cutting: auto-ignition, automatic height-adjustment, powder spraying, bevel triple cutting torch, back-strip gunCutting modeFlame/ PlasmaInput powerAC220V/ 380V ±10%  Boiler Fabrication Machines   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
