Glass Processing Machinery or Full Automatic Glass Cutting Production Line

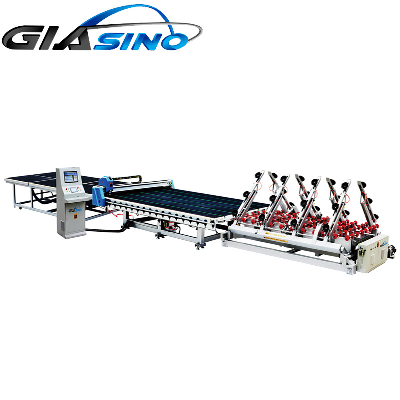

XC-CNC-4228 Automatic Glass Cutting Line                                           The line mainly contains three sections: 1.       XC-SP-2620 Automatic Glass Loading Machine2.       XC-CNC-2620 Automatic Shaped Glass Cutting Machine3.       XC-QP-2620 Glass Breaking Table      1. XC-SP-2620 Automatic Glass Loading Machine  Mechanical characteristic: -          Mn bridge steel (Q345A ), perfect surface treatment-          High quality vacuum system, fast sucking speed and high stability -          One key original reset function, for improving work efficiency -          Trouble alarm system and safety alarm system-          Four-bar linkage glass lift structure-          High density PU material glass convey wheel-          Acrylonitrile-butadiene rubber suck disc -          40CBM/hour vacuum pump-          Enclosed wire and air pipe set   Main parts list:      PLC: Omron (Japan)      Touch screen: MCGS       Converter: Teco (Taiwan)      Sensor: Omron (Japan)  Technical introduction:-          Tilt and suck: tilt angle adjustable, 3-19mm glass sheet auto-suck, suck depth 750mm-          Chain convey after glass suck -          Both auto and manual modes-          Auto alarm system and emergency button for make sure safety operation -          English language touch screen operation -          Glass sheet quantity and station position auto set-          Loading sequence: move-arm tilt up-glass sheet sense-glass sheet vacuum suck-move back-arm tilt flat-glass transmit to cutting table   Technical parameter:ModelMax. glass sizeThicknessDimensions (L*W*H)PowerAir pressure SP-26202600*2000mm2~19mm3560*2200*900mm8KW0.6~0.8MPaSP -42284200*2800mm3~19mm5000*2850*900mm8KW0.6~0.8MPaSP -51335100*3300mm3~19mm5400*3000*900mm8KW0.6~0.8MPaSP -61336100*3300mm3~19mm6430*3340*900mm8KW0.6~0.8MPa    2. XC-CNC-2620 Automatic Glass Cutting MachineMechanical characteristic: -          Mn bridge steel (Q345A ), perfect surface treatment-          Perfect machine body structure makes sure the tale flat enough and no out of shape-          Japan SMC valve controls the cutting pressure according to different thickness glass-          Cutter head 360 degree rotation, cutter head buffers up and down for glass and cutter protections -          High density water-proof table -          Imported felt, high flatness, antistatic -          3D edge searing system, high precision automatic location function-          Automatic lubrication system, work in step with cutter head -          Air float function and belt transmit -          Linear guide rail makes sure the high cutting precision and low noise   Main mechanical parts:      Table panel: high density water proof panel (flatness≤±0.20mm/m)      Rack and rail: KHK Japan       Guide rail: Hiwin Taiwan       Belt: Maiku (Joint venture)      Cutter wheel and cutter holder: Bolhe Germany   Main electric parts:       CNC System: Galil (USA)      Optimization software: Optima (Italy)/Guiyou (China best brand)      Servo motor: YASKAWA (Japan)      Pneumatic parts: Airtec (Taiwan)       Low voltage electric parts: Schneider (France)         Cutting pressure valve: SMC (Japan)  Technical parameter: ModelMax. glass sizeThicknessDimensions (L*W*H)Max. speedAir pressure CNC-15121500*1200mm2~19mm2480*2240*1275mm150m/min0.6~0.8MPaCNC-26202600*2000mm2~19mm3560*2912*1300mm150m/min0.6~0.8MPaCNC-42284200*2800mm3~19mm5320*3100*1300mm160m/min0.6~0.8MPaCNC-51335100*3300mm3~19mm6150*4212*1300mm160m/min0.6~0.8MPaCNC-61336100*3300mm3~19mm7150*4212*1300mm160m/min0.6~0.8MPa    3. XC-QP-2620 Glass Breaking Table Mechanical characteristic:-          Air float function -          Breaking bars 1+2 -          High density water-proof table -          Imported felt, high flatness, antistatic -          Breaking bars foot switch control -          Partial design for standard container load   CNC GLASS CUTTING LINE PARAMETER TABLE SHEET:   ModelMax. glass sizeThicknessDimensions (L*W*H)Max. speedAir pressure CNC-26202600*2000mm2~19mm11000*3000*1300mm150m/min0.6~0.8MPaCNC-42284200*2800mm3~19mm14500*3600*1300mm160m/min0.6~0.8MPaCNC-51335100*3300mm3~19mm17000*4212*1300mm160m/min0.6~0.8MPaCNC-61336100*3300mm3~19mm19980*4212*1300mm160m/min0.6~0.8MPa                                                                       /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
