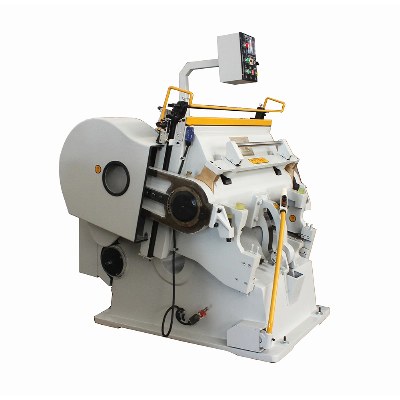

Carton Die Cutting Machine (ML-930)

Product Name: Creasing & Die-Cutting Machine ML930The machine image color can be customized with different color.The Creasing and Die-cutting machine is professional equipment, which creases and die-cuts ordinary cardboard, corrugated board, plastic sheet and leather product in printing, packaging and plastic industries. It has characteristic of compact structure, fine workmanship, large cutting pressure, high precision, easy and reliable operation, etc. The Main Structure Feasutures: 1. High strength cast frame made by top quality materials. 2. Smooth running, big pressure and low noise are obviously remarked as adopts 4-step helicatl gear machanism. 3. Opretaion altitude is rational arranged, movable platen opens to its oprimum. 4. With single, continuous, and delay functions, and the delaying range is adjustable. 5. Reliable safety protection system. 6. Centralized lubricating system. The machines are building in the workshop:The machine packed into the wooden case :The main specification:Model: ML-750 ML-930Inner sheet size 750*500mm 930*670mmSpeed: 23+/-3 strokes/min  25 strocks/minMax rule length:
