2023 Aluminium Window Door CNC Cutting Milling Drilling Machine Center

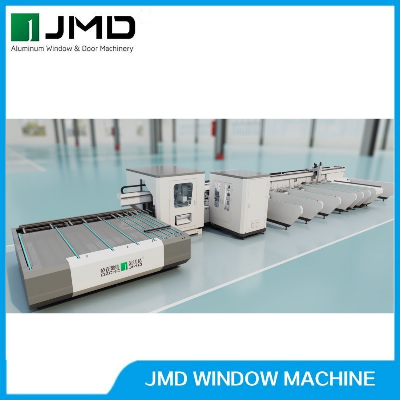

 Arbitrary Angle Machining Center  for Aluminum Window Door profilesLJZX4-6500   The machine supports the batch cutting of frame, sash, mullion or fly screen frame profiles; it can also support mixed cuts of multiple profiles (frame, sash, mullion or fly screen frame profiles). Cutting mode can be 45° cutting at both ends of profiles, 90° cutting at both ends of profiles or one end 45° cutting and the other end 90° cutting. To cut some industrial aluminum profiles, cutting angle can be arbitrary between±45° at both ends.It can process the glue hole, pin hole, drain hole, sharp angle, handle hole and lock hole, etc. Only load the aluminum profile to machine once, all processes can be completed.       Technical ParameterCutting/milling width: 150mm Cutting/milling height: 150mmCutting angle: any angle between ±45°Processing length range: 300~4600mm (up to 6500mm)Cutting length tolerance: ±0.1mm/1000mmCutting angle tolerance: ±0.1°Raw material length required: 3000mm~6500mmFeeding stroke of manipulator: 7300mmDetails  Other Aluminum Window Machines You May InterestedOur Company Our TeamPcaking & Delivery of Our Aluminum Window Machines  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
