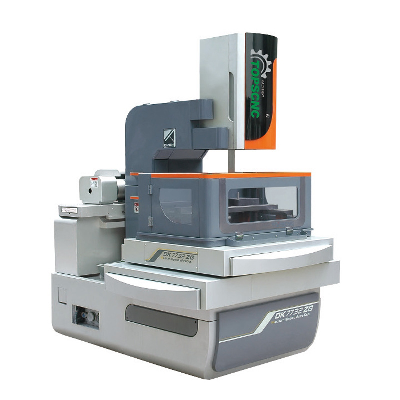

Multi Cutting Wire Cut EDM, Servo Motor Drive, Loop Control

Technique parametersMulti cutting Wire Cut EDM, Servo Motor Drive, Loop ControlTechnical parameterUnitDK7740ZGTable size (W*D)mm840×540Table travel (X*Y)mm500×400Max.workpiece dimensionmm900x600Table size(U*V)mm±30×±30Max. workpiece weightkg1000Max. thickness of workpiecemm300Max. taper angle/workpiece thickness ±6°/80mmMolybdenum Dia.mmφ0.15~φ0.25mm(φ0.18mm recommend)Max. wire feed ratem/sec1~11.4m/sec  frequency adjustableMachining precisionmm≤0.01Max. machining speedmm2/min≥200Surface roughnessμmone time Ra≤2.5,three times Ra≤1.0 five times Ra≤0.8Linkage control axis number X,Y,U,VMax.trip wire cylinderm250Z-axis control electronic controlMotor type X,Y,U,V all servo motorAxis controlled 4 axis simultaneousMin. control pacemm0.001Power supply 380VAC/50HzMax. working currentA12Power consumptionKw1.5Work liquid JR3AWater tankL90Filtering mode Paper filter/Italy pumpMachine weightkg2600Machine dimensionmm1900×1400×2060Size packagemm2000×1500×2400The noisedb≤70Product showWhy choose usFAQQ: Are you trading company or manufacturer ?A: We are factory.Q. Could your engineers go to our factory to install the machine and train our workers?A:Yes, our engineers could go to your factory and assist you.Q:What is your warranty?A:One year after shipment ,consumables are not included.Q: What is your terms of payment ?A:L/C or T/T before shipment.Contact usCompany: Jiangsu Dongqing CNC Machine Tool Co. Ltd.Address: East Suburb Development Zone, Taizhou city, Jiangsu Province, ChinaTel: 0086-523-86290115Mobile: 0086-15751152221 Web: topscnc.en.made-in-china.com/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
