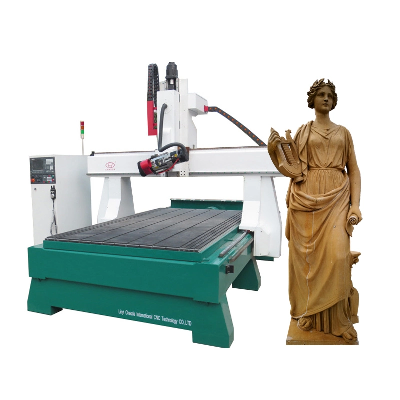

4 Axis Foam Cutting CNC Router Machine with Rotary Axis

4 axis foam cutting cnc router machine with rotary axis  All machine parts adopt high configuration and top quality from all over the world, to make machine with high performance and durability.Machine is with a big rotary device, can make different kinds of 3d sculptures, statues, figures, idols, landscapes, stage props, park designs, etc. Machine is with a flat table, can do deep flat works, like 3d reliefs, 3d molds, door furniture, acrylic words/letters, landscapes , etc.Spindle rotate from 0 to 180 degree, can make arc-surface milling, bending surface machining for 4D jobs, like special shaped arts, bended doors or cabinets, also can make horizontal milling, cutting and drilling works.With linear type automatic tool changer, spindle change tools automatically,no need manual work,keep good working accuracy and increased working speed.Model No.JCF1530L ATCFlat working size1500*3000*500mm*180 degreeRotary working size1000mm diameter, 2500mm lengthLathe bed structureT-extrusion, Thick Steel frameTable Removable, T-slot with clampsX structure  Rack and pinion, linear square railY structureRack and pinion, linear square railZ structure Ball screw, linear square railReposition accuracy±0.02mmMax. travelling speed 0-60000mm/minMax. working speed0-30000mm/minSpindle9kw air cooling ATC spindleTool magazine Linear type auto tool changer, 8 tools abilityDriving systemJapan YASKAWA servo motor and driverOperating system4 axis Ncstudio with ScreenOperation languageG codeWorking voltageAC380V, 3-phase, 50HzWorking materialsEps foam, Styrofoam, Woods, MDF, Composite boards, Alucobond, PVC, Rigid plastics, Polyester, Fiberglass, Acrylic, Organic glass, Aluminum, etc.1. Sample testing before shipment 2. Provide 2 days free training for each machine 3. 12 months warranty for each machine 4. Friendly English version manual and operation videos for studying 5. Free technical support by phone,email,chatting or remote 6. Engineers available to service machinery overseas   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
