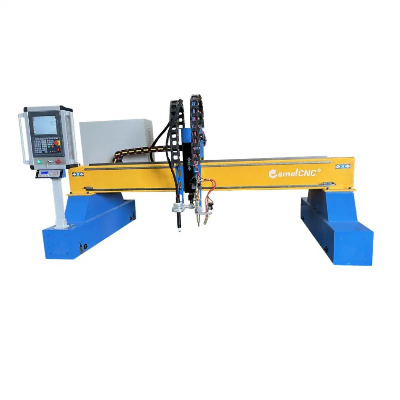

Gantry CNC Plasma/Flame Cutter Prices Gantry CNC Plasma Cutting Machine

Product DescriptionGantry CNC Plasma/Flame Cutter Prices Gantry CNC Plasma Cutting MachineProduct ParametersModelCA-2060Cross Beam width2500mm(Can be widen according to user's demand)Longitudinal Rail Length8000mm(Can be lengthened according to user's demand)Effective Cutting Width (X axis)2000mmEffective Cutting Length (Y axis)6000mm(Rail can be lengthened according to user's demand)Cutting ModePlasma&FlameDrive ModeDual-side Drive MethodRack and pinion drive for X and Y axesFlame Cutting Thickness6-200mmPlasma Cutting Thickness0.3--25mm( Depends on plasma power source capacity)Power source supply60A/100A/120A/200ATraveling speed20000mm/minCutting Speed0-12000mm/minPositioning accuracy 0.01mmRepeatability+-0.05mmPower Source380V 50/60Hz Power capacity25-50KW according to different power sourceCutting GasAcetylene,Propane,oxygenPlasma GasPressed air,Oxygen,N2Features1. The machine bodyIt is gantry type structure. The cross beams treated by whole annealing to eliminate stress so it has good rigidity and high strength without permanent deformation.2. The vertical railsThe vertical guide track adopts heavy rails. The surface has high precision after grinding . The rail length can be increased and decreased according to the requirements of users;Rails using 38Kg / m rail processed from the top surface and the side after grinding with high straightness and parallelism; foundation generally use concrete structure ( also available in steel ) 3. The cutting torch holderThe cutting torch holder adopts the collision-preventing design to ensure the cutting torches are not damaged in production.4. The horizontal railsThe horizontal guide track adopts a straight line track with high precision and smooth running.5. The driven systemThe driven device adopts Stepper motor and driver (Japan Panasonic Servo motor optional) which has high running precision.6. Regulator of auto height regulatorThe machine has many functions such as automatic position, automatic perforation, and automatic height-regulating device of capacitance. The plasma cutting machine is equipped with USA imported arc voltage height-regulating device.7. Program and nesting softwareFastcam ProNest CAD/CAM Nesting software8. CNC systemStarf Control system9. The track gaugeThe machine with below 4m gauge adopts single side driven, the machine with above 4m gauge adopts double-side driven to guarantee its precision and high speed smooth running.11. Plasma sourceLGK60A/100A/120A/160A/200A(US Hypertherm optional) SAMPLEPackaging & ShippingCompany ProfileAfter Sales ServiceFAQQ1: How to choose a suitable machine?You can tell us the working piece material, size, and the request of machine function.We can recommend the most suitable machine according to our experience.Q2: This is the first time i buy the machine, is it easy to operate?We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Teamviewer"online, with telephone or Skype explain.Q3: Can you customize the machine for me?Yes, we provide customized solution, but considering the cost, we will recommend the standard configuration to you first.Q4: What is the guarantee? In case the machine break down?The machine has 3 year guarantee, fail parts will be replaced for free if the machine under "normal operation".Q5: How about the documents after shipment?We will send all the documents by air after shipment. Including packing list, commercial invoice, B/L, and other crificatesrequired by clients.Q6: Delivery time?For standard machine, it would be 7-10 working days; for non-standard machine, it would be20-30 working days.Q7: How is the payment?Normally we accept T/ or LC, if you like other terms, tell us in advance.Q8: Do you arrange the shipment for me?For FOB or CIF price, we will arrange shipment for you, for EXW price, you should arrange the shipment by yourself.Q9: How is the packing?Step1: water proof wrapping film with foam protection in each corner.Step2: Solid seaworthy wood box package with steel belt.Step3: Save space as much as possible for container loading./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
