CNC Automatic Glass Cutting Table Machine/Glass Cutting Production Line

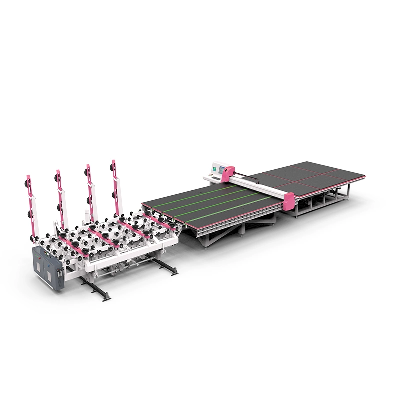

 TYR-4228 Full-Automatic Glass Cutting Machine Production LineMachinery Configuration: TYR-4228 Full-automatic Glass Loading MachineTYR-4228 Full-automatic CNC Glass Cutting MachineTYR-4228 Air-cushion Glass Breaking  MachineMachinery Specification:1. TYR-4228 Full-automatic glass double-arm and single position loading machine1.1 Equipment System: main frame/ running system/ transfer system/vacuum adsorption system/mechanical turning system/high and low pressure control system/program control system1.2  Mechanical  components:      1) turning wheel chain: high precision reinforced type      2) transfer idler wheel : PU      3) vacuum suction cup: double absorption structur      4) transfer/turning motor: Taiwan CPG motor      5) vacuum pump: PUXU( Sino-Germany)1.3 Electric elements.      1) PLC controller: Inovance      2) Transducer:Inovance      3) Control cable: High-flexible shielded control cables      4) Contactor: Schneider      5) Pneumatic part: Taiwan Airtac ,SMC1.4 Technical parameter:      1) Max glass size: 4200*2800     Min glass size: 1500*1500( left side)      2) Glass thickness:3-19mm      3) Loading glass cycle: 40-90s (adjustable)      4) Transfer speed: 0-40m/min (adjustable)      5) Max rack depth: 700mm      6) Loading weight: 900KG      7) Arm quantity in one side: 4 pieces      8) Vacuum suction cups quantity on each arm: 3 pieces      9) Loading arms: double arm      10) Work position: single position      11) Power( installation): 380V/50HZ      12) Installed power: 8KW      13) Compressed air: 0.3Mpa-0.5Mpa      14) Vacuum pressure: -70 ~-90Kpa 2. Technical information2.1 Main Introduction: Automatic glass loading machine With very sturdy frame structure, reliable vacuum system design with venturi vacuum device to prevent glass falling in case of electricity blackouts. Loading arms was driven by electrical motor.High quality certified components to guarantee long term reliability and easy, spare parts availability.Modular design makes future upgrades to more stations available.2.2 Technical description      1) Turning mode: mechanical turning, fast speed, steady operation, loading glass thickness 3 to 19 mm.  Assembled with double line turning transmission  chain, to ensure the transmission process safety and reliable.      2) Turning angle: adjustable, from 95 to 98 degree.      3) Rack depth: special connecting rod retractable mechanism, suction cup move forward 150mm, and rack depth is 700mm which could meet different kinds of glass rack.          4) Induction system:  two sets of photoelectric sensors to ensure safety    operation.       5) Roller bar: special connecting rod retractable mechanism, to ensure the synchronous lift and separate the glass piece safely.6) Suction system: introduced double layer suction, strong absorption.7) Suction cup control: Every cup have separated air valve to control, choose the quantity of working cup easily and freely. 8) Lift and loading system: lift glass before loading in case the glass damaged because of sticking.9) Alarm system: The machine has the alarm fittings, it have self inspection system and red and green alarm button. 10) Operation mode: The machine has two kinds controlling mode(automation and manual)11) Operation screen: Color LCD touch screen interface12) Parameter setting: The order and glass quantity of loading can be set automatically with digital information. 2. TYR-4228 Full-automatic glass cutting machine2.1 Technical parameter:       Max glass size: 4200*2800       Glass thickness: 3-19mm       Gross weight: 2.5T2.2 Cutting parameter:       Linear parallelism: ≤±0.25mm/m       The diagonal accuracy: ≤±0.30mm/m       Cutting bridge speed: 0-160m/min       Cutting bridge acceleration: ≥ 3.0m/s²       Cutting tool speed: ≥160m/min       Cutting tool acceleration: ≥ 6.0m/s²       Belt transmission speed: ≥ 40m/min       Cutting head accuracy: ≤±0.2mm2.3 Power:       Power (installation): 380V/50HZ       Installed power: 8KW       Compressed air: 0.6Mpa2.4 Equipment performance      Equipment frame: guarantee accuracy and keep the shape.      Cutting tool apron: cutting head can rotate 360 degree.      Table top: HDF board      Felt: Felt, smooth and anti-staticCutting oil: pneumatic input oil automatically, cutting and oil synchronizationTransfer system: Synchronized belt transfer automatically. 2.5 Mechanical parts:     Table top: HDF     Rack: KHK     Transfer belt: Barbieri     Cutting wheel: Germany Bohle2.6 Electrical parts:     Microsoft windows interface     Voltage: 380V/50HZ, equipped with transformer.     Motor: Japan YASKAWA sever motor     Approach switch: SN     Control card: Italy imported (match with Italy OPTIMA SOFTWARE)     Main electrical parts: Japan IDEC Relay, Schneider A. C. Contactor     Air proportional valve: Japan SMC2.7 Software     Italy imported cutting and optimization software     Optimization software can match with ERP system.     Cutting position limitation     Calculate capacity automati
