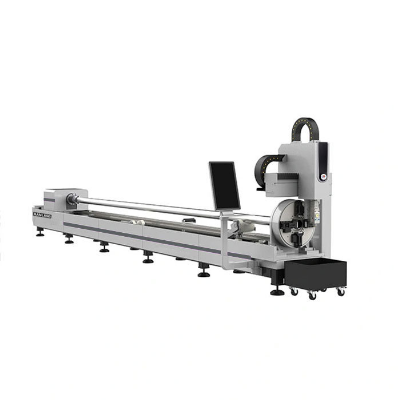

Metal Fiber Laser Cutter CNC Machine Metal Tube Steel Sheet Cutting Equipment

 Fiber Laser Cutting Tube MachineAdvantages:1. Self-centering pneumatic chuck, with thin tube protection limit, to ensure that the thin tube clamping is non-destructive;2. Strong dynamic performance, greatly improve cutting efficiency; 3. High-speed automatic laser pipe cutting machine, which can cut circular pipe, rectangular pipe special-shaped pipe and other profiles by high speed and high-quality laser. FSCUT3000Sis a control system developed for pipe processing, which supports high-precision and high-efficiency cutting of square pipes, round pipes, runway-shaped and oval-shaped stretched pipes, as well as angle steel and channel steel.A.Brand: Raytools/WSX/Precitec/OSPRI or others brands customer's requirements;If it is mainly thin plates, below 3000w, recommend:WSX/RaytoolsB. Auto Focus Tube Cutting Head.1.Lightweight design with fast acceleration, Optimized optical configuration and efficient air flow design significantly to improve cutting quality and efficiency.2.With QBH,QD G5 and other types of optical fiber interfaces, it is applicable to various fiber lasers.3.Good sealing to keep beam path clean.4.Automatically change the focus position. Laser Power: 500W/1000W/1500W/2000W/3000W/4000W/6000W/8000W/10000W/12000W/15000W/20000W/30000WBrand: IPG/RAYCUS/MAX/or others brands customer's The higher the power, the thicker the cutting thickness. Pneumatic Chuck a. Full stroke design b. Wide range of applications, diversification of processing profiles c. High repetitive positioning accuracy d. Low maintenance cost, long service life e.Multiple configurations are available e.1 Solid or hollow e.2 Comb-type or mortise-groove type claws   What's the difference between fiber laser, YAG laser and CO2 laser working on metal material?Laser sourceFiber laserYAG laserCO2 laserBeam qualityBestGoodPoorSpeedFastSlowSlowElectrical efficiencyHighCommonLowReliabilityBestGoodPoorMaintenanceFreeComplexDifficultRemote processingFreeComplexDifficultInitial investmentHighCommonLowProduct ParametersModelRL6020TWorking Area20-220mm diameter, 6m length tube processingLaser Power3000W (Optional Power: 1-6kw )Laser GeneratorMAX/Raycus/IPG/OptionalLaser Wave Length1080±5gnmMaximum Idle Running Speed60r/minMaximum acceleration0.8GPosition Accuracy±0.02mm/mRepeat Positiona lAccuracy±0.01mm/mControl SystemCypcut/Weihong Position Typered dotPower Consumption≤21KWWorking Voltage380V/50HzAuxiliary Gasoxygen, nitrogen, airFiber laser cutting headRaytools/WSX/Precitec/OptionalCooling SystemS&A / Tongfei / Hanli industrial water chillerWork Environment0-45°C, Moisture 45-85%Detailed Photos Quality InspectionApplicationFiber Laser Cutting Tube Machines are widely used in fitness equipment,oil pipeline,construction machinery bus production,         locomotive production, agricultural and forestry machinery, special automobile, electrical equipment manufacturing, laser external processing services and other mechanical pipe processing industries.  Professional for cutting1-10mm thickness of round pipe, square pipe, rectangular pipe and other special-shaped metal pipe, can be suitable for diameter Ф20-Ф220, pipe length of 6000mm. Exhibition&CertificationsCompany ProfileFounded in 2011,Ranling Intelligent Equipment Technology Co., LTD is a manufacturer specialized in the research development and production of laser cutting machines, laser welding machines and CNC Aluminum profile cutting machines for windows and doors. On the basis of technology development, we have taken in a group of experienced personnel who are talented in senior management marketing and skills of producing. We are located in Jinan Shandong province, one of the best professional machine industries in China. All the products are certificated by CE and comply with international quality standards and are greatly appreciated in a variety of different markets at home and at abroad.CNC Fiber Laser Cutting Welding Machine for MetalCNC Machine for Aluminum Profile Window and Door  After Sales Service1. 1 year Guarantee for the whole machine.2. 12 months Guarantee and free spare parts supply during this period.3. 24 hours online service4. 3-7 days lead time5. We will provide the Instruction Book, Operational manual and Training Video6. Provide technical support for the whole lifetime online7. TT/Ali Trade Assurance paymentPackaging & ShippingFAQ:1.How to choose the right to for me? A : Tell us the following information1) Metal material for welding: choose the most suitable model.2) Laser welding metal material thickness: the power of the laser generator.3) Line of business: We sell many products and advise on this line of business.2.Do you have CE document and other documents for customs clearance?A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and after shipment we will give you CE/Packinglist/Commercial Invoice/ Sales contract for customs clearance.3.If we want to learn how to operate the machine, Can you provide it?A:Yes, we can. We can provide
