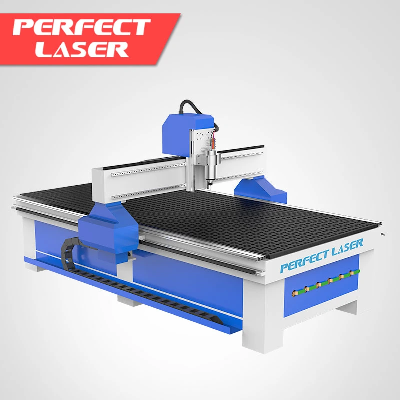

Wood Mdf Pvc Plastic Cutting Cnc Router Machine with Factory Price(Model:PEM-1325)Introduction:PEM-1325 CNC routers are designed for Ads industry with pure aluminum, which ensures the parallelism and greatly increases the precision and speed of the engine bed. It is a CNC routers for woodworking and can be applied in cutting of kneading board of large size and making of large-scale relief and label. The size of the machine is calculated and customized according to optimization rules in market Statistics. It covers main sizes of marks and labels in the market. It can cut through MDF, wood, plexiglass with thickness of 20-25mm one time and can be applied to large-scale relief, too.1325 CNC routers are doubtlessly a perfect product in the range of advertising. Technical Data: Product Advertising CNC Router Model PEM-1325 (1300*2500mm) Power 2.2kw,3kw,4.5kwTable material Aluminum Alloy Maximum feed height 80mmX,Y,Z Guideway rails type Round Shape Guide Rail, Rod Transmission Max Engraving Speed4,000-7,000mm/min Resolution ratio 0.002mm Repetition accuracy ±0.02mm Spindle power 1.5kw (Optional 2.2kw, 3kw,4.5kw) Spindle Rotating Speed 6000 - 24,000rpmSpindle cooling Water CoolingDrive motor system Step Motor and Step DriverInterfacePCI Port or USB Port Memory buffer (Flash) 128MBEngraving Command G code, u00, mmg, PLT, HPG Command language systemEnglish Version, Windows 98/2000/XP Operation SystemOperational SoftwareOriginal Type3 Software, ArtCam software or Wentai Software Command language systemEnglish Version, Windows 98/2000/XP Operation SystemSoftware Compatibility Support CAD/CAM software, PLT format, Corel Draw, Auto CADWorking temperature0-45Relative humidity 30% - 75% Product Features:1. Adopt Taiwan linear guide rail. The bearing of the lead guide rail is face to face, the long time use precision is high.2. Germany double nuts automatic ball screw, Excellent two-bolt pole made in Germany and sideways made in Japan or Korea.3. Advanced DSP digit-control system (optional item), handle operation and large liquid crystal display brings out more convenient operation, simpler maintenance and more human nature on the design of the machine.4. No dust oiling structure, guarantee the long term running of the mechanical aspect.5. Break point and break knife continue engraving function, can engrave at any place as you like.6. The compatibility of cnc router cutting machine is high, CAD/CAM software such as Type 3 /Art Arm / Castmate / Proe /CorelDraw /Art cut.7. High power frequency changing water cooled spindle, can process hard materials efficiently.8. Large internal memory capacity of 32M is able to store 30 processing files simultaneously and open and process any of them.9. Reinforced load-bearing bed,Precision round rail,Spindle motor 1.5kw/2.2kw/3kw/4.5kw CNC router, Screw drive, heavy steel platform, Auto water cycle, Enlarge driver, 10 pcs stone use knives for free. It can be sued as aluminum cnc router. 10. It can be also called 1325 CNC routers,CNC routers for woodworking,wood CNC engraving machine,aluminum CNC router, 3kw CNC router, 4.5kw CNC routers. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
