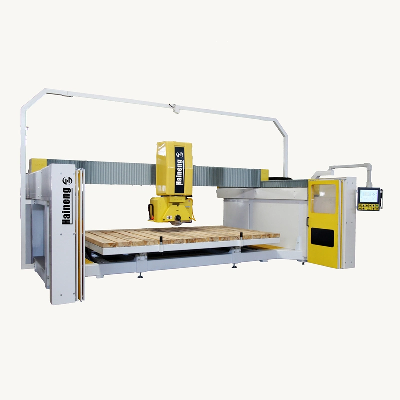

Product DescriptionMulti Function CNC 5 Axis Stone Cutting Machine is a new generation of 5axis Monoblock Bridge Saw with Vacuum Manipulation,Camera on Board,Tool Presetting,Slab Thickness Probe,Milling&Coring via collet on tilting head,advanced intelligent and synchronous CNC control system. Its powerful 11kw/15Hp main spindle with adjustable speed from 1000-6500rpm featuring tooling collet attachment provides a wide array of tasks using coring bits and router bits. Easy to use touch screen interface allowing quick and easy programming of simple jobs or programs imported via DXF. Vacuum manipulation on head is a must on any new bridge saw,it allows you to start the program and have a slab completely cut and moved on the table without the operator having to stop machine to move away. Real-time on board camera allows you to position the programmed pieces precisely over the area of the slab that requires cutting. Slab Thickness Probe can measure slab's thickness automatically. Tool Presetting can auto measure the diameter of blade or milling cutter Its head can rotate 360°and chamfer 0-90°. It can cut,drill,slot,dig round,mill,profile edge, slash cutting and other multi-functional integration.It is suitable for quartz stone, rock slab, artificial stone, granite, marble and other large, medium and small stone decoration projects.Characteristic:1. Compact size without needing the ground base. 2. With advanced CNC control system and all pattern operation, the machine can be operated without professional operators. 3. With powerful functions, the machine can work almost all the jobs of a small factory. 4. With less electricity and more efficiency, the cost is decreased much. 5. High quality accessories and electric parts are used to secure long service life and low cost. Product ParametersTypeunitSMT-500Main motor/Voltage/frequency 11kw/380v-3phase,50HzWorkbench size mm3800x2300Stroke of X axis mm3500Stroke of Y axismm2000Stroke of Z axismm350Stroke of A axis 360 degree rotationStroke of B axis Auto 0-90degreeCutting speed of X axismm/min1-15000Cutting speed of Y axis mm/min1-12000Cutting speed of Z axismm/min1-2000Rotating speed of A axisR/min0-10Dia. Of diamond blademm260-500Max.cutting thicknessmm110Camera capture layout YesTilting workbench 80 degree tiltingSpindle of main shaft/rpm1000-6000Bore size of blademm50Programming method CAD & manualVacuum Manipulation pressure -85kpaAuto measuring tool YesAuto measuring thickness YesOverall size(LxWxH)mm6350x4950x3450Weightkg6700 ProcessingPackaging & Shipping Partial Control ElementCompany ProfileCertificationsExhibitionMarketing SystemCompany informationAfter Sales Service1.Parts & Accessories Quick supply for needs2.Troubleshooting by phone, e-mail, or WhatsApp/Wechat3.Provide paper or electronic version of the product manualFAQQ:what is the MOQ?A:1 set.Q:How's your machine's quality?A:We are a professional stone machine manufacturer more than 20 years, we've sold lots of machine at home and abroad. We will continuously provide new and old customers more and better services to help your business booming.90% of our factory's machine are exported, including for the United States, Brazil, Russia,Algeria,Iran, Egypt, Morocco, Georgia, and other more than 10 major purchasers and for more than 20 Chinese trading companies OEM, and we also directly export too, the machines are exported to over 85 countries and regions.Q:What's the warranty time?A:The whole machine is guaranteed for one year, including electrical components and mechanical partsQ:Whether the machine can be customized according to our requirements?A:Customization available,Experienced techs for all your questions.The factory owner is a mechanical engineer with more than 25 years of design and manufacturing experience. A variety of products have been customized for different customers in more than 20 countries./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
