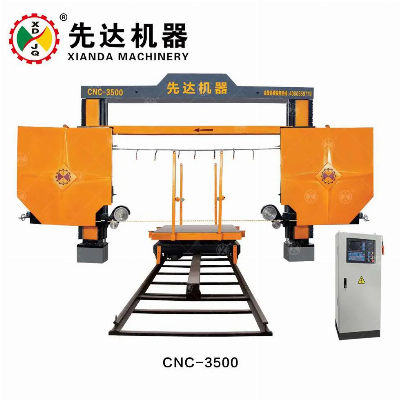

CNC3500 Diamond Wire Saw Stone Cutting Machine

CNC 3500, four-axis linkage, is controlled by CNC. It is the ideal equipment for block cutting and processing, including column slab, pillar, Roman column, numeral, letter, Chinese characters,etc.. Main features are as follows: 1. The main motor uses inverter for speed control. 2. T he track uses steel frame reinforced structure, much stronger.3.  The worktable is 360° rotary and adopts double nut structure, more stable,4. Synchronous lifting through intermediate drive makes its cutting more stable and efficient. 5. The cantilever gearbox uses S-type waterproof structure to prevent water damaging the bearing and insure the accuracy of the cutting radian.6. Aluminum wheel diameter is 1600mm. The dynamic balance on aluminum wheel makes each position of the same weight and ensures accurate cutting.7. The lifting structure uses 16 surfaces slideway and 28pcs rolling wheels structure, making the support more stable and adjusting the gap after the pillar wears, which greatly enhances the cutting stability and elongates the bead rope's service life.Technical ParameterParameterUnitCNC3500-diamond wire saw machineMaximal Processing Size (L*W*H)mm3500*3500*2100Worktable sizemm2000*2500Wire Speedm/s0~40Main Motorkw15Water consumptionm³/h6Gross weightkg10500Outline dimension (L*W*H)mm9800*7500*4500Xianda machinery      Fujian Jinjiang Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.With the rapid development of company, we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep "Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.Exhibition* Training how to instal the machine, training how to use the machine.* Engineers available to service machinery overseas.* After-sales service 24 hour on line. If you have any problem,just conact our sales department,customer service department,etc at any time./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
