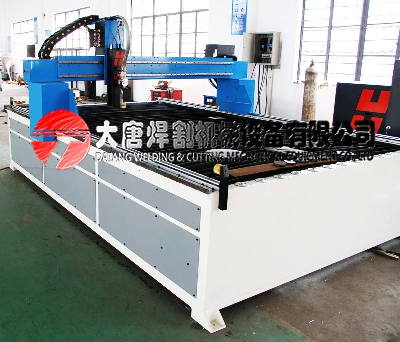

Direct Manufacture CNC Plasma Flame Cutting Machine

Specifications  Technical PerformanceThis series of cutting machine is a high efficiency and high performance equipment,which uses gantry type,single drive or double drive,and combines CNC control,precision mechanism,and oxygen cutting.This machine uses advanced CNC systen from abroad,such as Spanish Fargor and American Hypertherm.Its excellent cutting parameters,reliable and stable features ensures the perfect cutting effect.CNC flame torch has auto height regulator and auto igmition functions,which isconvenient for use.Technical parameter GaugeEffective cutting lengthEffective cutting lengthMin.Distance of torchCutting depthCutting speedfree running speedCNCStrip3000-10000mm2200-9200mmLength of railway -2500mm230mm80mm6-200mm50-1000mm/min≤6000mm/min  CNC Multihead Flame Cutting MachinModel of Ralls span(mm)40005000600Roughness of cut surfaceRa12.5Effective cutting width(mm)320042005200Repeat precision±0.5Min cutting width(mm)(CNC)230230230Main pipe lineOxygen(MPa)P=1(Strip)808080Acetylene(MPa)P=0.1Thickness of steel plate-cutting(mm)6-1006-1006-100Voltage(V)AC220±10%Speed of steel plate-cutting(m/min)0.05-10.05-10.05-1Frequency(Hz)50Max return speed(mm/min)400040004000Total power(kw)1.5Cutting precision(mm)±0.5/1000Description of products This series of cutting machine is of gantry structure. All the structure members are annealed, shot-blasted integrally and painted. Guide-rails on the frame are treated with high-frequency quenching, then ground and paneled together.The advantage is: good rigidity, high precision, stable structure and so on. Linear triple-torch, infinite-revolving triple torch and plasma torch can be equipped based on customer requirement. Torch elevation unit is adopted with ball-bearing guide-way, which can elevate automatically or manually. Also auto-ignition function is available. Based on customer choice, tube and cable arrangement can be hanging-type or drag-chain type. Special specifications can be customized according to the customer request            /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
