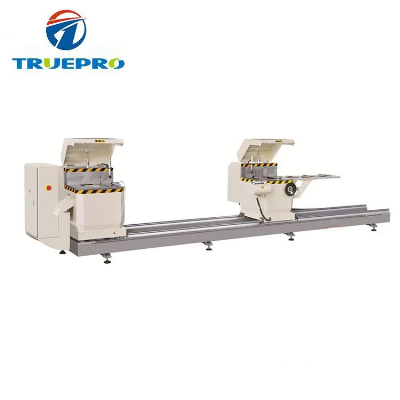

Digital Display Double Head Aluminum up Cutting Saw Machine

     Digital display double head aluminum up cutting saw machineMachine feature:   1. Used for aluminum window and door profile cutting and for curtain wall profile cutting, also for plastic profile cutting2. Adopt carbide alloy blade, diameter up to 500mm dia., line of high speed and high precision machining.3.Right heads feeding adopts pitch ball screw-lead motion, with high accurate driving, locating and smooth working.4. The machine equipped with up-feed blade and digital display positioning system.5.Two cutting head can work together or single. When together work, one time can cut off the required length and angle6.The saw blades can be adjusted within the 45°- 90° freely.7.This machine max. cutting size is 200*135mm, suitable for wide profile.Parameter:ModelCLJG2X-500*4500Power supply3N~50Hz 380/220V or As Customer Specification Cutting motor power4.4KWCutting motor rotary speed2800r/minOperation air pressure0.5~0.8MPa                        Air consumption60L/minBlade specificationø500×ø30×4.4×Z120     Cutting speedstepless speed regulation0~3m/min             Max. cutting length4500 mm Min. cutting length400 mmCutting widthmax 200mm                Cutting heightmax. 135mm  Cutting angle90°,45°Repeat locating length tolerance±0.2mm Cutting profile surface plane≤0.10mmCutting angle tolerance±5′ Cutting profile surface roughnessRa12.5µmContour dimension5750 mm×1300mm×1500mmWeight1800KGSMachine details:1. When can we arrange shippment?We usually arrange shippment within 15 days after getting deopsit,but customized machines should be more than 25 days.2.What you can do if my machines have problems?1) We can send you free components to you if your machines are in guarantee time.2) We can dispatch our engineers to repair your machines3.Do you provide equipment operation training?A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.All of our engineers have passport.4. If I make Aluminum window and door, how many basic machines do i need?1).double head cutting saw 2).Lock hole copy milling machine3).End milling machine4).Automatic Corner connector automatic cutting saw5).Single head Corner combining machine/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
