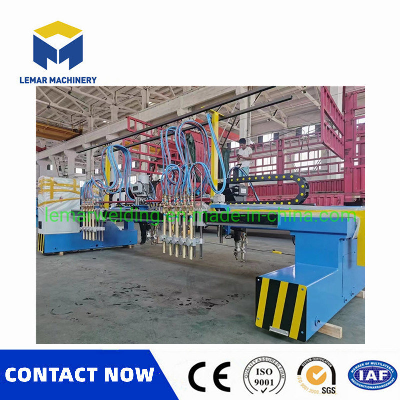

Steel Structure H Beam Metal Plate CNC Plasma Oxygen Cutting Machine

Steel Structure H beam metal plate CNC Plasma Oxygen cutting machineCNC plasma cutting machine mainly cuts carbon steel, stainless steel, aluminum, alloy, manganese steel, iron, copper, etc. The common size of gantry plasma cutting machine: 4 meters * 18 meters, 5 meters * 12 meters, etc.Plasma cutting has a fast cutting speed, especially when cutting ordinary carbon steel sheets, the speed can reach 5~6 times that of oxygen cutting method, the cutting surface is smooth, the thermal deformation is small.As a special processing equipment for H-beam, the gantry CNC plasma flame straight cutting machine is widely used in large-scale steel structure buildings.Specification:  ModelCNCRail distance4000mm-9000mmDriver modeBilateral driveRail No.24/38KGEffective cutting width3200mm-8200mmTorch lift stroke170mmCutting machine moving speed50-8000mm/minPower supply modelUSA Hypertherm PowerMax105Cutting steel plate thicknessMild Steel: 25mm Stainless Steel:22mmperforation capacityMild Steel:16mminput powerAC220V 50Hz 1Pcut surface roughnessRa12.5Diagonal difference≤0.5(1000×1000square dash)positioning error≤0.5mm/mGas sourcecompressed air  Features:1. Install the plasma automatic height controller to automatically lift the cutting torch according to the unevenness of the steel plate, prevent the collision of the cutting torch, prolong the life of the cutting torch and save costs.2. The control system has a graphic display function, which can observe the cutting process in real time.3. Support multi-language control, H beam CNC plasma cutting system has 48 kinds of graphics, you can directly use conventional graphics, change the size, set the number, and improve efficiency.4. Adopt well-known brand stepping motor hybrid servo motor driver, stable operation and low noise5. Install the flame automatic ignition and tempering device to avoid burning when the lighter is ignited. The tempering will cause an explosion during cutting to ensure safety.6. Install the plasma anti-collision frame, the plasma cutting torch flame straight cutting torch will automatically stop when it hits the steel plate, preventing the cutting torch from colliding and saving costs.7. Equipped with automatic typesetting software to save typesetting time and improve the utilization rate of steel plates.8. It can be equipped with various power plasma power sources, 120A 200A 300A 400A, to achieve plasma thick plate cutting. The plasma cutting speed is 3-5 times that of flame cutting, which improves the production efficiency.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
