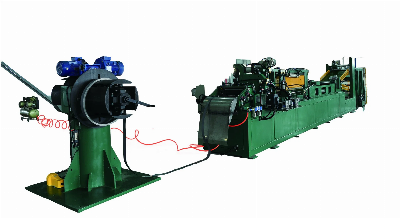

Small Transformer Silicon Steel CNC  Cutting Machine

HJ-200-1200A Small transformer Silicon Steel CNC Cutting machine 1. Summary 1.1.HJ-200/1200A is specialized equipment for production of the core of transformer.1.2 It consists of 2 shearing station to process the lamination of yoke (without V) and leg. 1.3 It is easy to operate automatically and fine accuracy with AC servo motor, PLC, and touch screen.1.4The feeding device utilizes servo system to make sheets width and positioning automatically. 2.Main Parameters2.1.Processing range: Core steel thickness                    0.23-0.35 mmCore steel width                          40-200 mmLength of cut                              350-1200 mm2.2.Processing tolerance:Cutting length tolerance            ± 0.10mm     when L ≤ 1000,                                                   ± 0.15mm     when L ≥ 1000,Angle                                          ± 0.025 °  Maximum burr                           ≤ 0.02mm  2.3.The processing of core type: It can meet the following core type processing:2.4.Productivity: Feeding line speed                     5-200m/min Cutting speed                             Max 52 pieces/min  2.5.Required working condition:Rated   Power                      P = 10 KW Power source                       three-phase AC 380V 50HZ ± 10% 2.6.   Overall dimension: L 9000mm * W 2050mm * H 1800mm 3.Equipment and main function of the compositionIt consists of double head decoiler, buffer, feeder, shearing, collection box and electric control system.3.1.Double head decoiler:Frequency speed regulation, auto-tracking synchronization control.Double head can be turned to opposite position, when one head is under working and another one can be ready to next processing, shorten the loading time and enhance work efficiency. Single mandrel working parameter:Maximum load capacity:                    800Kg Coil size:              Inside diameter      Ф500mm                                    Outside diameter    ≤ Ф1000mm                                    Width                    40-200mm Decoiler line speed:                            0- 200 M / min stepless Speed RegulationThe mandrel diameter variation:        Ф450 - Ф520mm 3.2.Buffer deviceIt provides buffering for sheet strip between feeder and decoiler by a pit. Collect Sensor signal from the guide plate and keep the decoiler synchronized with feeder speed. The Station has safety protection function.3.3.Feeder  It consists of encoder, AC servo motor, feed roller and other mechanical combination controlled by PLC.Servo motor                          2kwEncoder                                 5000lineFeeding speed                        0~200 M/minFeeding roller diameter          120 mmFeeding roller width               250 mm3.4 Shearing stationShearing station is equipped with 2 shearing machine, and positioning on 45 degrees and 135 degrees.Length of carbide blade         300mmCutting burr                           ≤ 0.02 mmCutting stroke                        17 mm The shearing machine is driven by pneumatic.3.5 Collection boxAfter the conveyor belt into material unloading ridge, with the aid of gravity and eccentric make yoke and side pillar fall into collection box.3.6 Electronic control systemIt consists of 1set touch screen for graphical, character and figure display.  It is man-machine interface with necessary information in English (per customer req.); its main console can control all the devices for manual and auto operation. 4.Other4.1.The cutting blade is made of carbide alloy, and each grinding can be used for 500,000 shears. Extra blades set, other consumable items shall be payable separately by the client (unless indicated otherwise in the specification).  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
