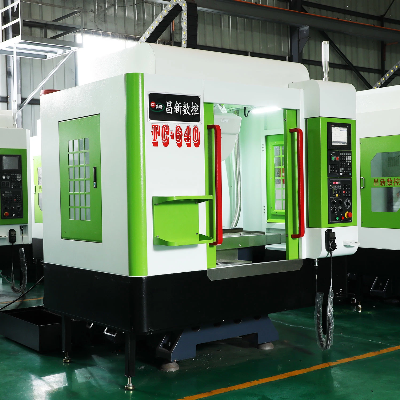

3 Axis CNC Drilling and Tapping Machine for Faucets

Product Description3 axis cnc drilling and tapping machine for faucetsSpecifications3 axis cnc drilling tapping machine center TC-640Auto Lubrication System:auto evenly distributing lubricationTool Magazine:Taiwan ATC Clip Arm type tool magazine (21 tools)Bearing:Japan NSK or German FAG optionalX/Y/Z-Axis Travel600mm/400mm/300mmDistance from Spindle Nose to Table135mm-435mmDistance from Spindle Center to Column Guide Rail450mmWorking Table Size700*420mmTable Max Load300kgMaximum Tool DiameterΦ80mmMaximum Tool Weight7kgTool Changing Time (Tool to Tool)2.3secondsT Slot3pcs,size:18T,Interval:100mmMain SpindleTaiwanSpindle Speed20000rpmSpindle Motor Power5.5kwX/Y/Z-Axis Motor Power1.5kw/1.5kw/3.0kwRapid Traverse(X/Y/Z)48000/48000mm/48000mm/minCutting Speed1-12000mm/minSpindle Taper DiameterBT30Positioning Accuracy ( Japan JIS standard)±0.005mm/300mmRepeat Positioning Accuracy ( Japan JIS standard)±0.003mm/300mmTotal Electricity Demand15kwMachine Size(L*W*H)2100×2000×2600mmMachine Weight3.5tonLinear guide rail and ball screwTaiwan HiwinSupport WayX/Y/Z Axis precision slide (Taiwan HIWIN/ PMI)30mm wide P gradeBall screwX ,Y:Φ28,Z: Φ32  P16 C3grade ( Taiwan HIWIN/PMI )CouplingGerman BK3 SW*JMain electrical accessoriesGerman Schneider, Merlin GerinCircuit breakers and relaysGerman Schneider, Merlin GerinWorking LED lampTaiwan Hand control electronic hand wheelTaiwan AccessoriesTool box (1 set)Tool Holder(2 pcs)vise and Lock knife seat (1 set)Machine operating manualOperation and programming manualServo Motor and Controller ManualHigh pressure spray gun(1 pcs)Hand Wheel 4th/5th rotary table optional:FAQQ1: How can I choose the most suitable machines ?A1: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .      You can also send us the products drawing ,we will choose the most suitable machines for you .Q2: What's your main products of your company?A2: We specialized in CNC Milling Machine ,Vertical Machining Center ,Lathe Machines , Drilling Machine, Tapping Machine and soon. Q3: What's the Payment Terms ?A3: T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight.Q4: What's the MOQ?A4: 1setQ5: What's the warranty?A5: One year./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
