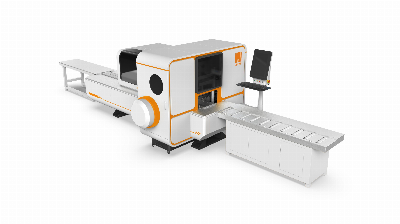

New Smart Automatic CNC Punching and Cutting Machine

 CNC Busbar Punching and Cutting Machine  Product DescriptionDetailed photo1. 3D Smartbar software--This is our independent patent in busbar processing, which can realize 3D automatic         programming and dynamic simulation.2. Double clamps--Comparing other single clamp, double clamps can make processing more accurate and stable.3. Hydraulic system-- Piston pump (rather than gear pump) has large drive power and realize high efficiency.4. Main components--Imported, so the quality and service life can be guaranteed. Product feature Control SectionSerial No.NameInstruction1Programmable ControlOMRON/Schneider2SensorSchneider3Control ButtonOMRON4Touch ScreenOMRON5Computer Lenovo6AC ContactorsABB7Circuit BreakerABB8Servo MotorsYASKAWA(Japan) or Schneider9Servo DriversYASKAWA(Japan) or Schneider10Control software and Three-dimensionalcomputer-aided designGaoji Busbar Processing System(GJ3D) Transmission SystemSerial No.NameIllustration1Precision Linear Guide RailTaiwan HIWIN2Precision Ball Screw CylinderTaiwan HIWIN3BearingJapan NSKHydraulic SectionSerial No.NameIllustration1High Pressure Electromagnetic valveItaly2High Pressure TubeGermany Rivaflex3High  Pressure Oil Piston PumpRexrothTechnical parameterNameUnitParameterPunching UnitkN500 Shearing UnitkN500 Embossing UnitkN500 Max position Speed of X-axism/min48Max Stroke of X-axismm2000Max effective of Y-axismm530Max Stroke of Z-axismm350Stroke of striking Cylinder mm45max hit speedHPM100number of die stationPunching Dieset 7Shearing Die set 1 Control Axis 3Hole Pitch Accuracymm/m±0.20Max hole punch sizemmΦ32( Thicknessof Copper bar
