3D Pipe Metal Steel Tube CNC Laser Cutting Machine

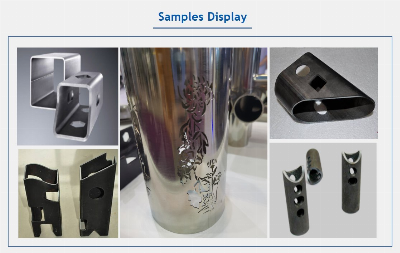

FORTUNE LASER Brand CNC Laser Machine Metal Tube Cutter Fiber Laser Tube Cutting MachineMachine CharactersWide range of pipe clamping: Round tube φ20-φ220 and Square tube side length is 20 * 20mm-150mm * 150mm. Support the cutting of various shapes of pipe materials, such as I-beam, channel steel, angle steel, elliptical pipe, waist pipe, multi-deformed pipe, etc.One-piece bed frame: The unique industrial structure design gives it maximum stability and higher vibration resistance and damping quality. The bed is annealed at a high temperature to eliminate internal stress. The whole machine is highly integrated, with good system performance and long life;Fully automatic self-centering pneumatic chuck: Fully automatic pneumatic chuck, precision gear drive; Powerful automatic centering function, 3 times the speed of electric chuck, convenient and efficient; Pneumatic super clamping force, the heavy pipe clamping is firmer, the cutting precision is good;Cutting Head Specialized for tube cutting: Specialized smart cutting head makes various types of tube cutting easier; Tapered pointed design makes it easy to prevent a collision when cutting sharp tubes; New collimation and protection lenses, better protection for the core components.Professional tube cutting system: Real-time core deviation compensation. High precision realization of perforation. Support corner crafting individually set. Support advanced technology such as cooling point, sharp corner ring cutting, release corner, etc; Machine configurationModelFiber Laser Cutting Machine FL-T SeriesLaser source1000W-6000WCNC Cutting SystemProfessional tube cutting systemLaser headOSPRI/Gangchun/Precitec/RaytoolsMachine bedFortune LaserX/Y axis gear rackFortune Laser/APEXPrecision linear guideROUST/TBI/SHAC/HIWINMotor DriveJapan Yaskawa Servo motor (X750W/Y750W/Z400W)Electronic componentsFrance Schnei -derPneumatic componentsJapan SMCMachine bed accessoriesFortune LaserWater chillerHanli/TeyuNote: This machine configuration is only for your reference, many other brands for each part of the machines are optional based on your requirements and your budget. Please feel free to contact us for more details.Machine Parameters  ModelFL-T4020FL-T6020Maximum pipe effective cutting thickness≤14mm≤14mmEffective round tube cutting rangeDiameter 20mm-220mmDiameter 20mm-220mmEffective tube cutting length4000mm6000mmMaximum total load of chuck600kg (less than 200kg can run at full speed, more than 200kg needs to run at reduced speed, 600kg needs to be reduced to 30%-50% of full speed)Workbench axial positioning accuracy≤0.05mm/1000mm≤0.05mm/1000mmWorkbench repeat positioning accuracy≤0.03mm≤0.03mmMachine Dimension (L*W*H)15M* 2M* 2.5M15M* 2M* 2.5MX/Y/Z axis strokeX 400mm,Y 9200mm,Z 300mmX 400mm,Y 9200mm,Z 300mmMachine WeightAbout 6000kgAbout 7000kgLaser Source Power(Optional)1kW/1.5kW/2kW/3kW/4kW/6kWApplicationsRound tube/pipe slope cutting, Round tube bevel cutting, Tube/Pipe hole cutting, Tube/Pipe letter cutting, Tube/Pipe pattern cutting, Tube/Pipe cutting, Lampshade cutting, Square tube/pipe cutting, etc./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
