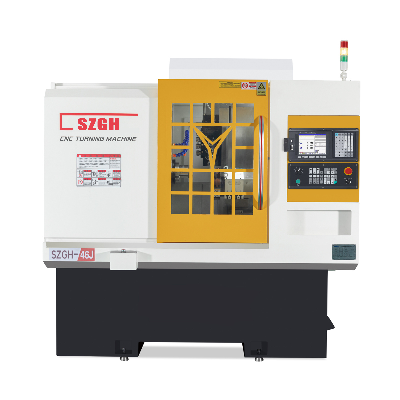

Lathe Machine Parallel Lathe CNC Lathe Machine for Precision Threads Cutting

Product OverviewSZGH-46J CNC lathe is suitable for batch production of copper, iron, aluminum and stainless steel bars within 45mm, and batch production of open-type forged parts with automatic feeding of pellets within 60mm. It can also be equipped with hydraulic chucks for single-piece production of parts within 350mm.Using multiple patented technologies such as high rigidity and anti-deformation structure, it is suitable for processing products with a single-side cutting amount within 4mm, precision tolerance within ±0.0075mm, and smoothness within 1.6. It is widely used in the processing of large parts with high precision and rigidity. Through careful design and matching, the performance of each accessory can be fully utilized to achieve the best cost-effective ratio.Adopting SZGH high precision cnc control package ,make the process more highly efficient!Standard Configuration  Technical parameter item UnitStandard value Max valueProcessing capacityMax. diameter of bar boremm45-Max. particle diameter (disk type)mm400420Max. length of workpiecemm380400Cutting amount of stainless steel on one sidemm34.5 Machining accuracy of the workpiecemm±0.0075-Surface roughnessRa 1.61.6the height of center tool holdermm50 - Turning Diametermm420 -Square Knife Specificationsmm20*20 -TravelsX-axis  effective travelmm1000 -Z-axis effective  travelmm400 -Y-axis Y-axis mode -side 4+ end 4 power head -Y-axis travelmm220 -Y-axis power head clamping type -ER225 -Y-axis maximum speedrpm25004000Y-axis rapid traverse speedm/min15 -Maximum drill diametermm16 -FeedX-axis rapid traversem/min2530Z-axis rapid traversem/min2530X-axis servo-motor powerkW1.5-Z-axis servo-motor powerkW1.5 SpindleMax.Spindle Speedrpm35004000Spindle Motor PowerkW5.5kw servo7.5kw servoSpindle nose taper-A2-5-Support hydraulic chuck sizeinch810DimensionsDimensions mm2100*1500*1900-Total Weightkg2800-  Machine tool specifications and component itemsSpecificationStandardOptionalPart SpecificationsScrew32mmTaiwan ball grinding precision grade- Guide rail30mmTaiwan H-class linear guide rail-Bearing-SZGH high rigidity barrel spindle-Spindle motor5.5kWServer host-Feed servo1.5kWSZGH High Speed Servo-CNC ControlAc8F-GSZGH high-speed CNC system-Machine specificationsBed Type45° Slant Bed-Base form-Heavy-duty anti-deformation patented base   -Clamping method-hydraulic clamping-The above configuration parameters are for reference,and the configuration listed in the price composition and physical acceptance shall prevail.   *Can mount right-setting or back-setting chip conveyor, strong chip conveying capacity.*Anti-deformation patented heavy-duty base, heavy enough to support fast. Heavy enough to support bar and large parts, anti-vibration, improve precision and smoothness.*The key components adopt high-quality wear-resistant configurations such as Taiwan, and the sleeve and spindle are all dynamically balanced.*Bed adopts flat bed, slide board adopt 30°slant design, high rigidity, good machining flexibility.*Super compact design, big inside space, modern appearance.*Base adopt multi-layer strengthening rib, ensuring bed's strength and stability.*Adopt high precision integral spindle unit, spindle motor adopt high-performance servo motor, big output torque, high-speed wide adjustment range.*Adopt high precision pre-stretched ball screw(double nuts), coupled with feeding motor directly by linkage, high transmission rigidity, can realize μ class precise turning.*Adopt SZGH electric control package to make electromechanical cooperation play the best efficiency.  CNC CONTROLLER SYSTEM1) 800x600 8.4 inchs real color LCD displayer.2) Support PLC and macro function, and automatic tool exchange function.3) 128MB Memory , 100Mb user store room.4) 5MHz Pulse Output Frequency, Max speed is 300m/min, feeding speed is 150m/min.5) Adapted servo spindle can realize spindle continous position,rigid tapping,rigid screw processing.6) High anti-jamming switch power(220VAC -> 24V&5VDC).7) Built-in many plc programs,which can be edited freely.8) With USB interface,it supports file operation in flash disk,system configuration and software upgrade.9) Display in chinese or english,which can be selected by parameter.10) Analog voltage output of 0~10V in two channels,support double spindles.11) 32 bits high performance, low power consumption industrial grade ARM11 microprocessor.12) I/Os : 56*32, 40*32 I/Os can be edited freely.13) cutter offset : C.14) English menu, program and interface, full screen edition.    FAQ1. Who are we?We are based in Guangdong, which provides CNC total solution package. Such as lathe machine, and milling machine, and matched sysytem,which has independent technical teams and over 10 years of technical and overseas sales experience. sell to Eastern Europe(20.00%), Mid East(20.00%), Southeast Asia(15.00%), Southern Europe(10.00%), South America(8.00%), North America(5.00%), Western Europe(5.00%), Eastern Asia(4.00%), Central America(4.00%), Northern Europe(4.00%), Afr
