Carbon Steel Sheet Metal Laser Cutter Fiber Laser CNC Cutting Machine

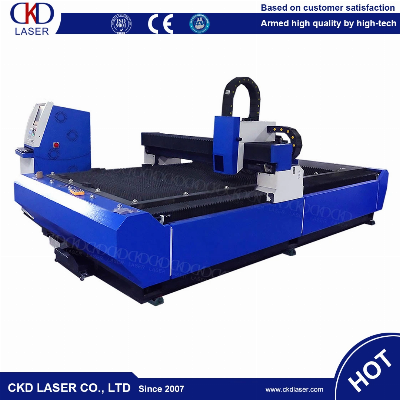

Carbon Steel Sheet Metal Laser Cutter Fiber Laser CNC Cutting MachineCKD-FCLO-500/1000Advantages CKD-FCLO series is an opening bed type fiber laser cutting machine, including CKD-FCLO-500 and CKD-FCLD-1000, CKD-FCLO-500 is with 500W fiber laser source, CKD-FCLO-1000 is with 1000W fiber laser source, CKD-FCLO series has the advantages as below:Integration design without too much spare parts outside, smaller space, less costs.600ºC heat treatment, 24 hours cooling in the oven, 8 meters gantry milling, high ate precision, make sure 20 years usage without deformation.Waste collection device could be moved both sides which have no special request for machine location.Air cylinder helps to feed sheet metal easily and prevent scratching.Separated gas supply with independent pressure valve assures good cutting.Auto-change for gas when cutting different sheet metal.Pressure Alarm. When there is no enough gas with low pressure, alarm will be drawn your attention.Low pressure hole punching is special function.ConfigurationCKD-FCLO series is equipped with a Raytools cutting head. All construction sub-units, such as fiber laser resonators, CNC (C Computer Numeric Control) controls, program software, handling equipment, etc. are supplied by world class quality manufacturers.The principal characteristics of CKD-FCLO series fiber laser cutting equipment are:Compact design facilitating a wide variety of applications.CNC with laser control function.Resonator with reflective sensors.Simple program for pieces and cutting plans with automatically adapted feed speed and power output for each piece, using CNC.Highly dynamic equipment.Rigidity: high strength transfers due to stability of construction.Durability: enclosed drivers.Accessibility: spare parts service.DocumentationThe following documentations will be supplied with the machine:Copies of the Machine Instruction Manual:CE conformity declaration.Delivery Protocol.Software manual.CD for backupEnvironmental conditionsThe temperature range at the workplace must be between 15-35 degrees C. Thesystem components must not be exposed to direct sunlight.In the case of tropical climatic conditions or if the temperature of the workplacerises above 35ºC, it is recommended that the equipment should behoused within an air-conditioned space/room.The Dew Point conditioning of the ambient air should be less than 10 degrees Cin order to prevent condensation in the refrigerated parts of the machine.It is recommended that the machine should be installed on a vibration-free floor.Vapors resulting from paint or solvent injection can be absorbed by the laser beam and can adversely affect the functioning of the system. For this reason, contact with the laser beam by such vapors may constitute a high risk of explosion.Cutting SamplesPacking1500*3000mm fiber laser cutting machine dimensionModelMachine lathe bed (m)Electrical Control boxwater chiller(m)voltage regulator (m)containerCKD-FCLO-500  5*2.4*1.951.283*0.949*2.046 0.904*0.683*1.1750.55*0.45*1        20'GPCKD-FCLO-1000  5*2.4*1.951.283*0.949*2.046 0.904*0.683*1.1750.55*0.45*1        20'GP/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
