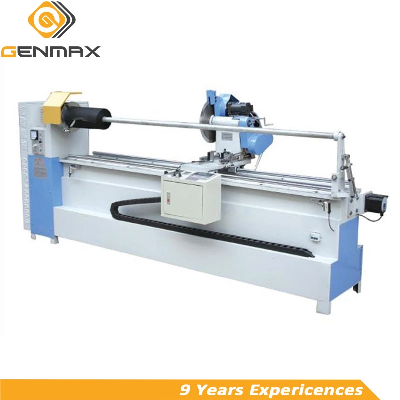

Automatic CNC Fabric Strip Cutting Machine

It is also named as strip cutting machine, fabric striping machine, material and  straight-grain fabric cutting machine. It is used for striping of various widths of materials like fabric, non-woven fabric, tent, umbrella, yacht, foam, leather, and plastic. Features: 1. Principal axis and circular knife use CVT system, it enable to change rotating speed and control positive/negative switching. 2. Provided with the automatic system, can be sharpened without move blades; With dust cleaning device, keep fabric and strack clean. 3.Using imported high precision system to control cutting width, with precision ball screw and slide, control cutting width of 0.1mm, to achieve high precision cutting. 4.Using imported screw ball and slide track, parallel to cut, Using stepless speed regulation AC motor, steadily move without abrasion to get the best quality. 5.Using LCD screen, can be directly input kinds of cutting width, and amount; Provided with the conversion functions of manual or automatic. 6.Using rapidly feeding design, you can operate it easily. Model:ZM170 Fabric Width: 1.7m Fabric Speed :  0-800 r/min  Cloth Diameter: 300mm(Can be customized )  Fabric shaft diameter: 37mm(the gap is 1-2mm) Fabric Motor power: 0.75Kw  Blade motor power: 1.5Kw Min Cutting Width: 2mm  Dimensions: 2.7 m x0.75m x1.4m Brand Name:BellotModel Number:BT-170AMFabric Width: 1.7m/2.05m/2.4mFabric Speed :0-800 rev/min Cloth Diameter: 300/400mm (Can be customized )fabric shaft diameter: 37mmFabric Motor power: 0.75KwBlade motor power: 1.5KwMin Cutting Width: 2mmVoltage: 380V/220V Dimensions: 2.8 m x1.5 m x0.85 m  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
