Hualong Machinery Fully Automatic Edge Cutting Machine with Favorable Price

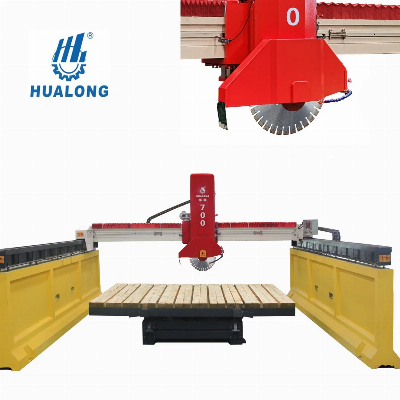

Infrared Automatic Bridge Stone Cutting MachineHLSQ-700  is mainly used for granite, marble cutting, with many advantages such as rational construction, steady movement, high accuracy, convenient installation and maintenance. Compared with similar products, the advantages are obvious. It is a very important and common equipment in stone processing equipment.Main Features1) Controlled by PLC, operated expediently, accurately and stably.2) Cutting head can tilt 45° for mitre cuts (Optional function).3) Working table can tilt at 85 degrees for easy loading slabs and rotates 360 degree for ideal cutting. A full 360°rotating table enables precision cutting of material edges. 4) Laser device is adopted for slab positioning accurately.TECHNICAL DATA FOR HLSQ-700   Configuration Diameter of  blade  mm Φ400 - 700 Power of main motor kw 18.5 Working platform dimensions cm 320 x 200 Main Performance Parameters Max. processing dimensions mm 3200 x 3200 x 220 Working platform tilting degree n° 0-85 Working platform rotating degree n° 90-360 Water consumption m 3/h 4   Measurement Gross weight kg 6100 Dimension (L x W x H) cm 600 x 500 x 280   Advantages1) Durability: Good quality steel is used as the mechanical parts and reliable electric parts are used to guarantee high reliability & durability. 2) Precision:      a,  Crossbeam movement (Y-axis) along V-guide way with high precision.    b,  Magnetic ruler is adopted for slicing measure.      c,  Laser device for accurate alignment.    d,  V-guide rail system applies not only in left and right movement of the girder but also in lifting up and down section, thus reduces the error and improves cutting accuracy.3) Use-friendly:    a,  Touch screen control panel and all movement is controlled by PLC to realize operation available.    b,  Work table can be tiltable and removable. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
